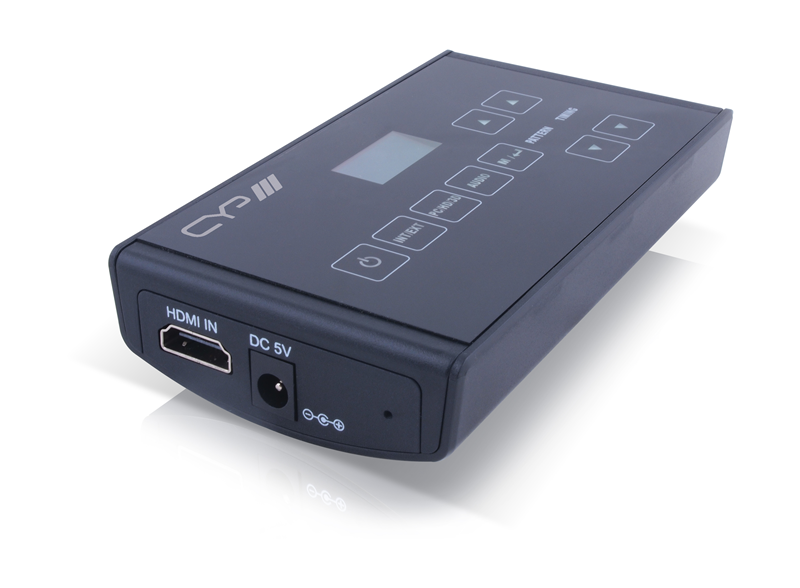

3D Mini HDMi Analyser XA-1
XA1
Allows to analyse AV sources for resoluiion and EDID information whilst also providing pattern generation and test functions for identifying display capabilities, also supports the analysis and pattern generation of 3D signals. This allows to check compatibility between sources and displays and provides a means of idnetifying system problems for troubleshooting.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI female (1x HDMI uncompressed, AV and Data)
1 x Stereo mini jack (1x Service Port)

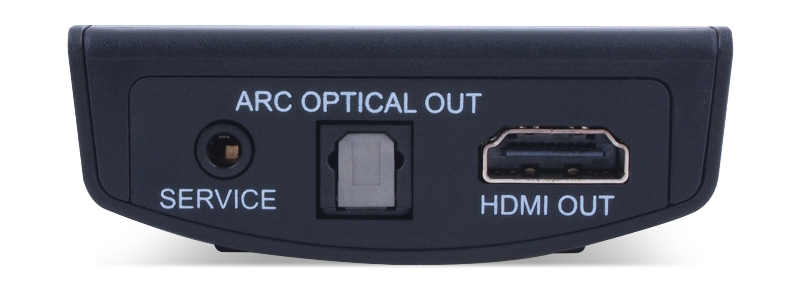

Outputs:
1 x HDMI female (1x HDMI uncompressed, AV and Data)
1 x Toslink (1 x ARC Output (Optical))
Resolutions supported:
PC: 640x480 up to 1920x1260
HD: 480i up to 1080p + 1080p24fps
Supports 3D-signals, HDMI 1.4 and audioformat Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
