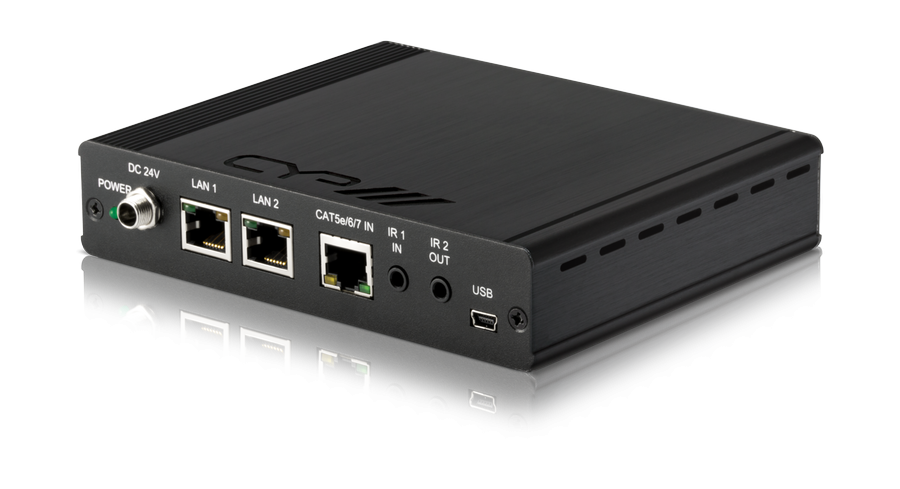

CAT Receiver (HDBaseT) 2xHDMI 2K,4K/Audio/LAN/ RS232/ IR/ PoE 100m PU-507RX-2HCD
PU507RX2HCD
Allows the conversion of a CAT signal back into two HDMI (max. 4k, 2k and 1080p) incl. audio (digital or analogue Stereo Audio balanced or unbalanced), CEC, LAN, IR and RS232 tw signals with 1UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. Only in conjunction usable with PU-507-TX, PU-8H8CTX, PU-8H8CTXIR and PU-8H8HBT. Full HDCP and PoE compatible. Transmission of 4k, 2k or 1080p@60Hz.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

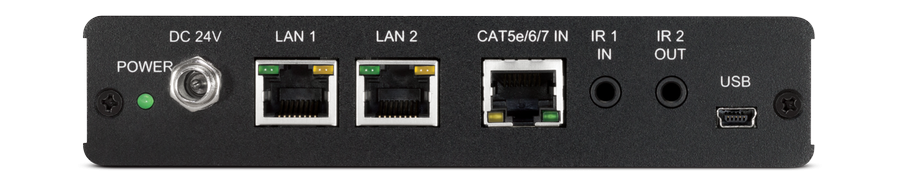

Inputs:
1 x RJ45 female

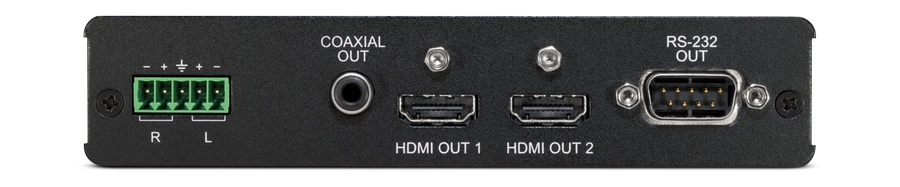

Outputs:
2 x HDMI female
1 x RCA female (digitale Audio)
1 x Phoenix 5 pol. (analogue Audio)
2 x RJ45 female (LAN (I/O) IP)
1 x 9 Pin D-Sub RS232 female
2 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD
