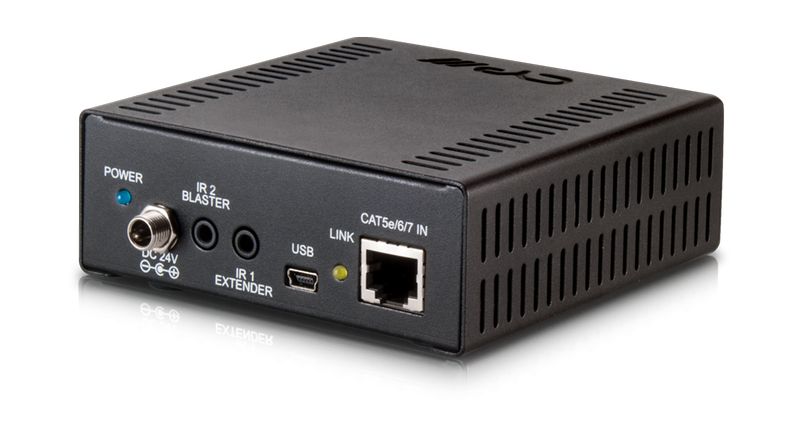

CAT Receiver (HDBaseT) 2xHDMI 2K,4K/ LAN/ RS232/ IR/ PoE 100m PU-507-RX-2H
PU507RX2H
Allows the conversion of a CAT signal back into two HDMI (max. 4k, 2k and 1080p) incl. audio, CEC, LAN, IR and RS232 tw signals with 1UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. Only in conjunction usable with PU-507-TX, PU-8H8CTX, PU-8H8CTXIR and PU-8H8HBT. Full HDCP and PoE compatible. Transmission of 4k, 2k or 1080p@60Hz.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:

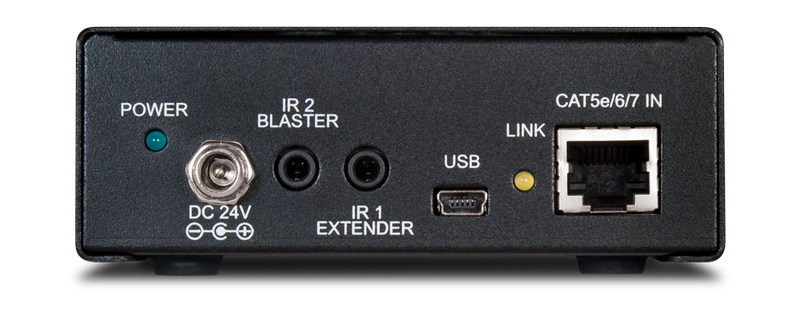

1 x RJ45 female
Outputs:

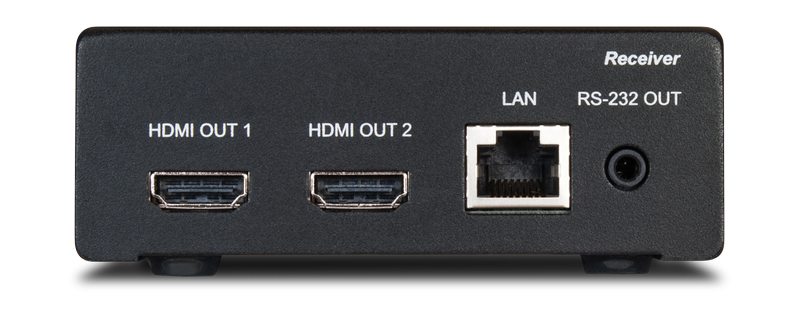

2 x HDMI female
1 x RJ45 female (LAN (I/O) IP)
1 x 3,5mm jack female for RS232 out
2 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD
