CAT Receiver (HDBaseT LITE) 2xHDMI 2K,4K/Audio/RS232/IR/PoE 60m PU-515PLRX-2HCD

Hersteller

PU515PLRX2HCD

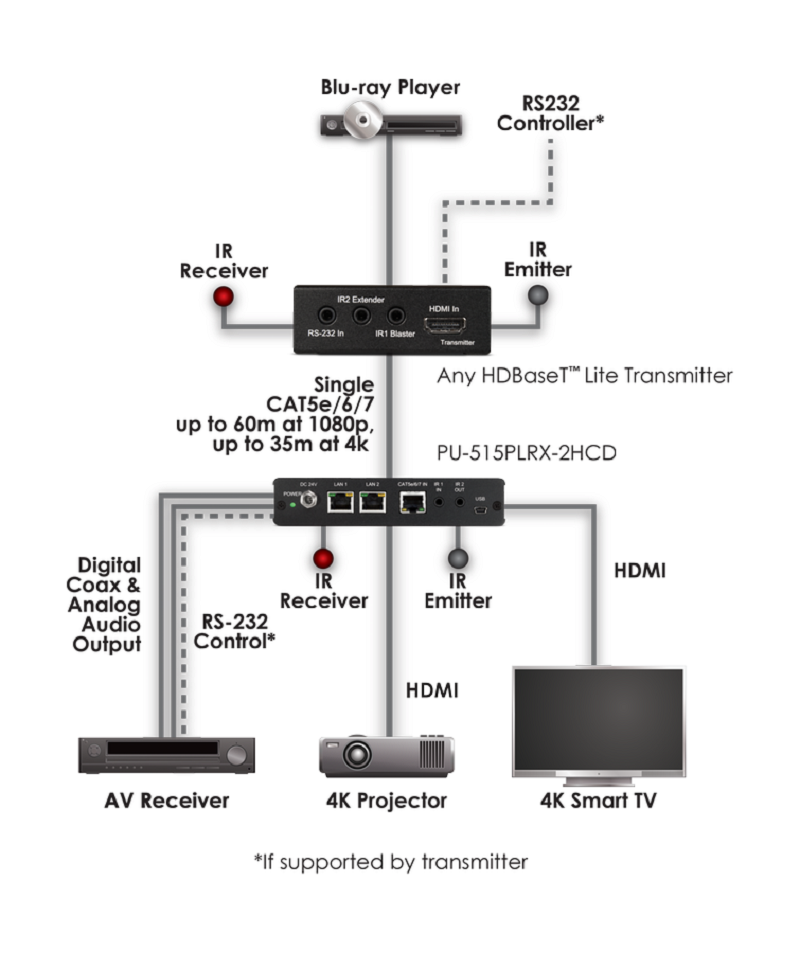

Allows the conversion of a CAT signal back into two HDMI (max. 4k, 2k and 1080p) incl. audio (digital or analogue Stereo Audio balanced or unbalanced), CEC, LAN, IR and RS232 tw signals with 1 CAT5e/6/7 (up to 60m) cable with HDBaseT LITE technology. Only in conjunction usable with PU-515PL-TX, PU-1H3HBTPL, PU-1H7HBTPL & EL-5400-HBT.

Preis auf Anfrage

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

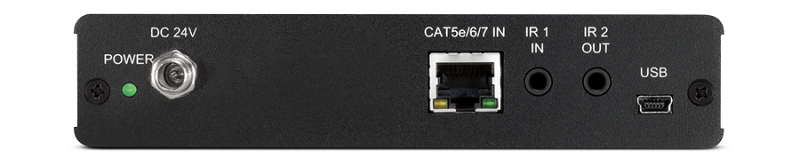

Input:
1 x RJ45 female

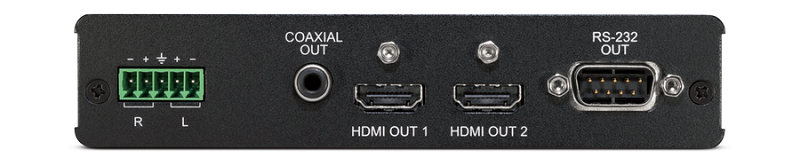

Outputs:
2 x HDMI female
1 x RCA female (digitale Audio)
1 x Phoenix 5 pol. (analogue Audio)
1 x 9 Pin D-Sub RS232 female
2 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Stereo Audio (balanced), Audio7.1, Dolby TrueHD, DTS-HD

Producer
CYP Europe
Product
PU515PLRX2HCD
Gehäuse
Metall
Weight (kg)
0,38
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V / 1,25A
Operating
0°C - 40°C
Abmessungen BxHxT mm
148 x 30 x 128
Artikel Nr.
7199
