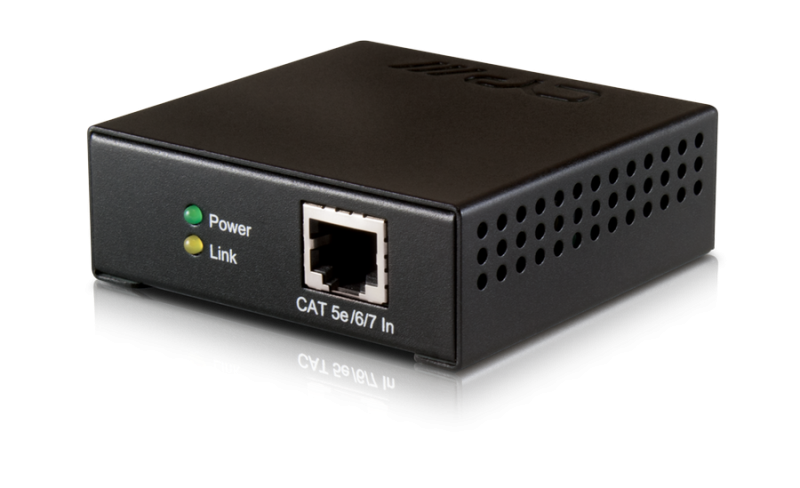

CAT Receiver (HDBaseT LITE) HDMI 2K,4K/ RS232/ IR/ PoE 60m PU-515PL-RX
PU515PLRX

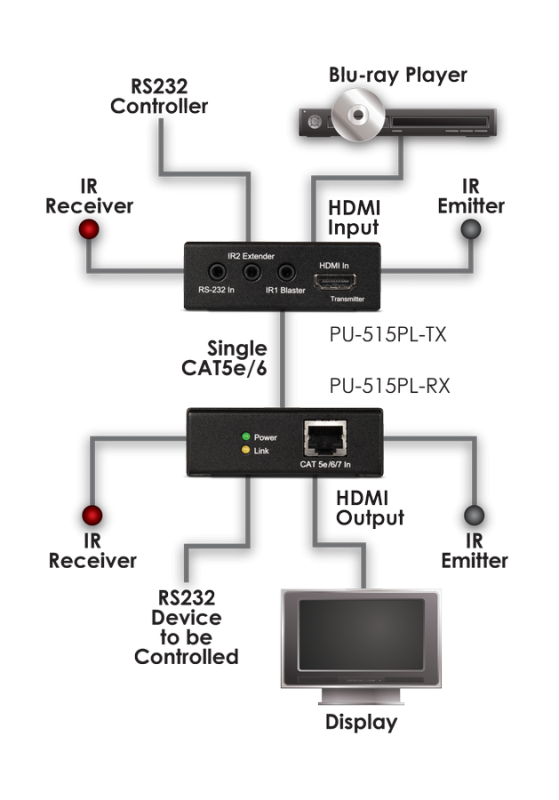

Allows the conversion of a CAT signal back into a HDMI (max. 4k, 2k, 1920x1200 and 1080p) incl. audio or DVI signal, HDMI, CEC, IR and RS232 tw signals and PoE with 1UTP CAT5e/6/7 (up to 60m) cable with HDBaseTLITE technology. Only in conjunction usable with PU-515PL-TX, PU-1H3HBTPL, PU-1H7HBTPL & EL-5400-HBT. Full HDCP and PoE compatible.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x RJ45 female
nputs:

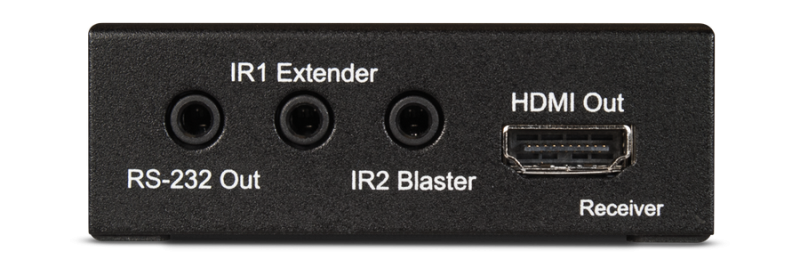

Outputs:
1 x HDMI female
1 x 3,5mm jack female RS232 female
1 x 3,5mm jack female for IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI, DVI, CEC, HDCP1.1, 2.2
Audio: 7.1CH, Dolby TrueHD & DTS-HD
