CAT Receiver (HDBaseTLITE) HDMI2.0 UHD,4K/ RS232/ IR/ PoH 60m PUV-1210PLRX
PUV1210PLRX

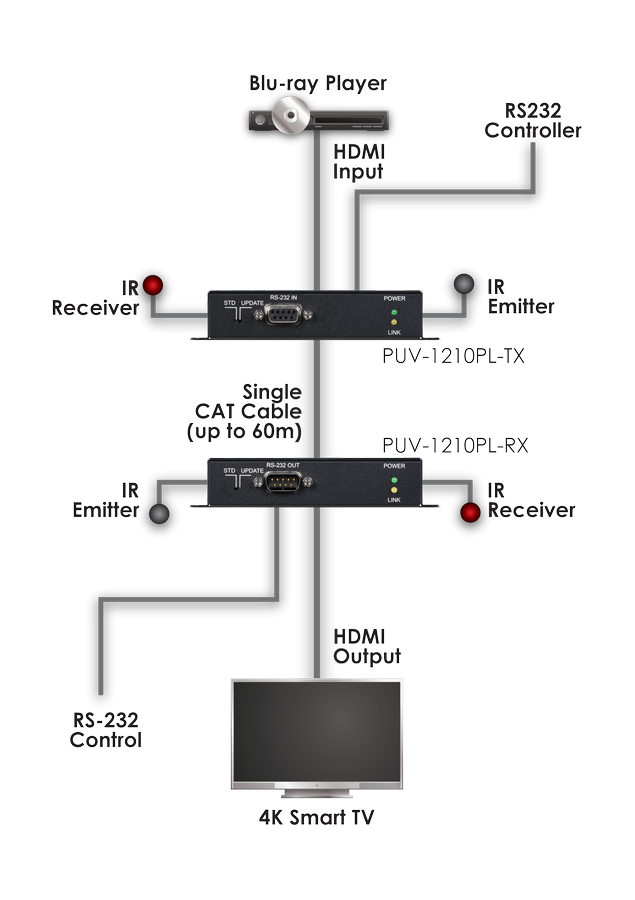

Allows the conversion of a HDBaseT2.0 signal back into a HDMI2.0/ HDCP2.2 (max. UHD/ 4K/ 1080p@60Hz), Audio, USB2.0, LAN, IR und RS232 tw signals with 1 CAT6a/ 7 (up to 60m) cable. The system support the HDBaseT2.0 specification with the 5 Play technology. Full HDCP compatible. Transmitter PUV-1210TX deliver the power PoH (Power over HDBaseT) for Receiver.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

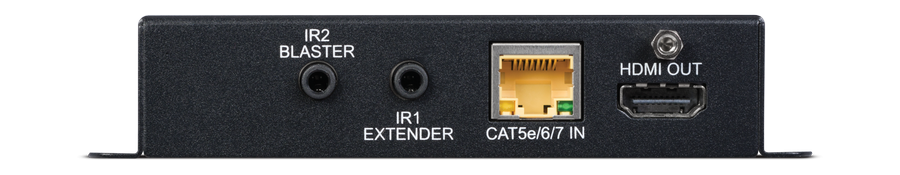

Inputs:
1 x RJ45 Buchse (HDBaseT)
1 x 3,5mm Klinken Buchse (IR)
Outputs:
1 x HDMI Buchse
1 x 9pin D-Sub (RS-232)
1 x 3,5mm Klinken Buchse (IR)
Power by the Receiver:
48V; 0,83V
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP2.2 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio: OAR (optical Audio return), ARC (Audio return channel), LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
