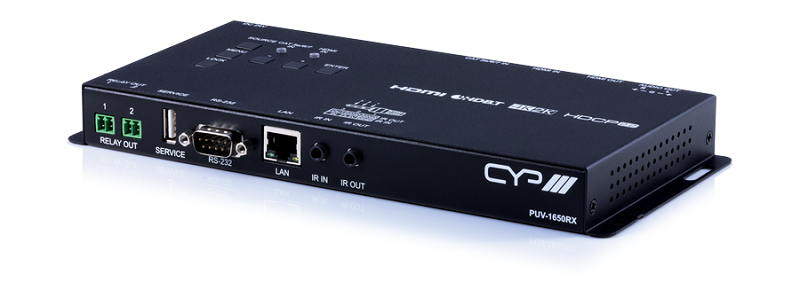

CAT Receiver/ VideoScaler/ Control HDMI/ Audio/ HDBaseT PUV-1650RX
PUV1650RX
The PUV-1650RX has been designed with collaboration in mind, it-s the perfect turnkey solution for receiving and switching video in commercial applications. The PUV-1600 series not only provide total AV conversion and extension, they also add a level of system control throughout the meeting space. The unit includes a HDMI Input and Output offering total meeting space compatibility. Sources can be received from upto 100m (1080p) and 4K@60Hz (4:2:0 8-bit) and over 70m by a CAT 6/7 cable. This receiver can scale the HDBaseT video from the source or local HDMI input to match the connected displays resolution requirements. The PUV-1650RX differs from other HDBaseT extender sets with its on board control relays that can be activated in a number of ways defined by the user. This could include, IP, RS232, Trigger or Push Button control. Complimentary control products within the CYP range include the CR-TG1, CR-CS2 & CR-KP products.
A key feature of the PUV-1600 series is that the power is sent to the TX from the mains powered RX. This offers additional flexibility when integrating and designing meeting room solutions.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x RJ45 (HDBaseT)
1 x HDMI
1 x 3,5mm (IR)
1 x D-Sub 9 Pin (RS232)

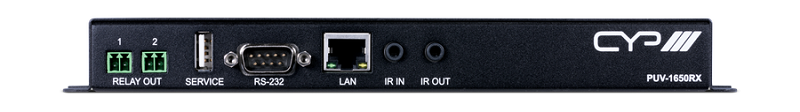

Outputs:
1 x HDMI
2 x Phoenix 2 Pin (Relay)
1 x Phoenix 5 Pin (Stereo Audio)
1 x 3,5mm mini Jack (IR)
Control options:
Autoswitching, Frontpanel, Ethernet, RS232
Resolutions supported:
VGA to WUXGA, 480i to 1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP2.2 und DVI 1.0
Audio: analog und digitales Audio (LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio)
