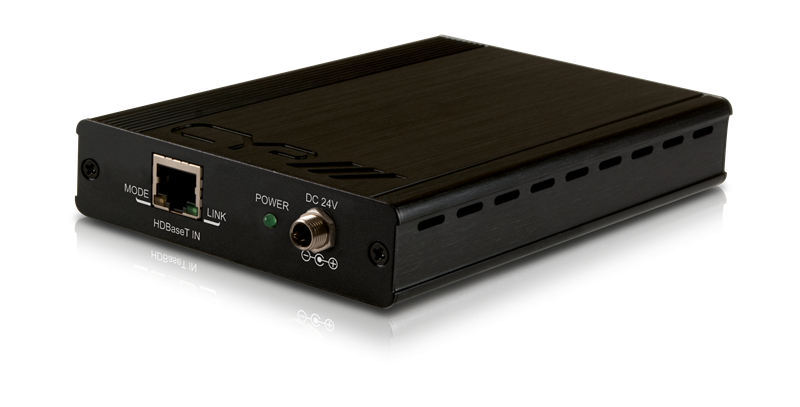

CAT Repeater (HDBaseT) 100m PU-HBT-EX
PUHBTEX

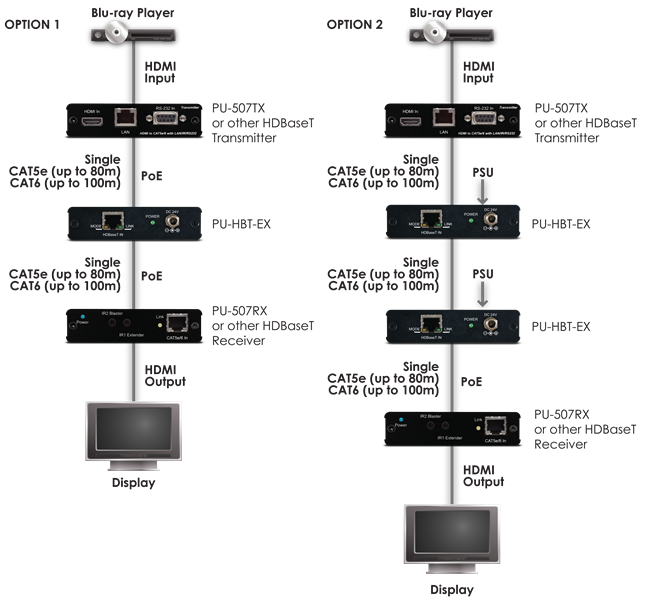

Repeat the HDBaseT signal from a HDBaseT extender and a matrix switcher up to 100m over 1 UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. Only in conjunction usable with PU-507-KIT, PU-1109-KIT, PU-8H8CTX, PU-8H8CTXIR, PU-4H4HBTE und PU-8H8HBTE.
€ 495,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Input:
1 x RJ45 female
Output:
1 x RJ45 female
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p, 2K & 4K
Formats supported:
Video: HDMI, DVI, CEC, HDCP1.1, 2.2
Audio: 7.1CH, Dolby TrueHD & DTS-HD
Control: RS232, IR, LAN, PoE
Producer
CYP Europe
Product
PUHBTEX
Gehäuse
Metall
Weight (kg)
0,30
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V / 1,25A
Operating
0°C - 40°C
Abmessungen BxHxT mm
152 x 25 x 98
Artikel Nr.
5531
