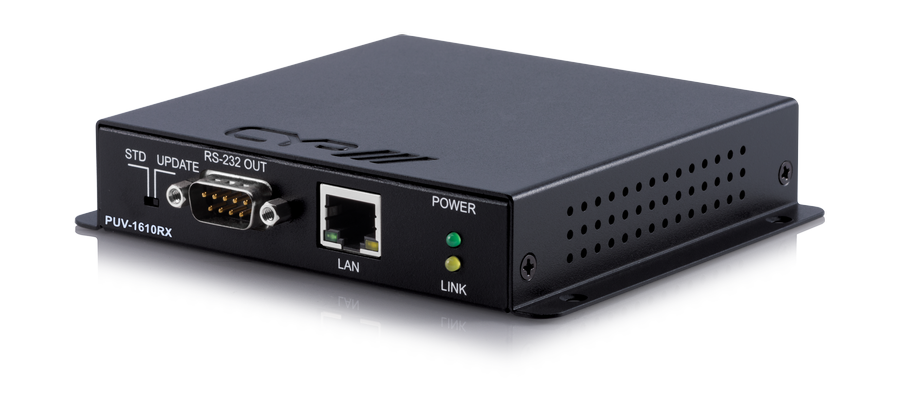

CAT RX (HDBT) HDMI2.0 UHD,4K/ LAN/ RS232/ IR PoH from RX 100m PUV-1610RX
PUV1610RX
Allows the conversion of a HDBaseT signal back into a HDMI/ HDCP2.2 (max. UHD/ 4K/ 1080p@60Hz), Audio, LAN, IR und RS232 tw signals with 1 CAT6a/ 7 (up to 100m) cable. The system support the 5 Play technology. Full HDCP compatible. PoH (Power over HDBaseT) for Transmitter from Receiver PUV-1610RX.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x RJ45 female (HDBaseT)
1 x 3,5mm jack female (IR)

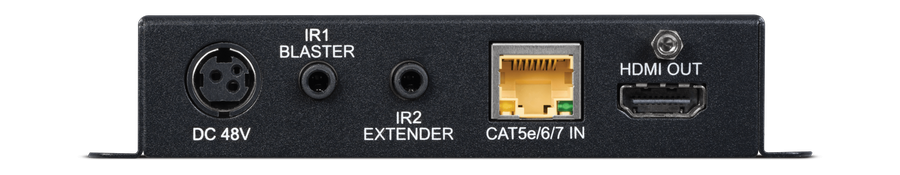

Outputs:
1 x HDMI female
1 x DSub 3 Pin female (RS232)
1 x 3,5mm jack female (IR)
1 x RJ45 feamle (LAN)
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI, HDCP2.2 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio: 7.1CH & Dolby TrueHD and DTS-HD
