CAT Rx/ Matrix 2x2 HDMI2.0, HDBaseT auf HDMI, Audio, USB PUV-2600RX
PUV2600RX

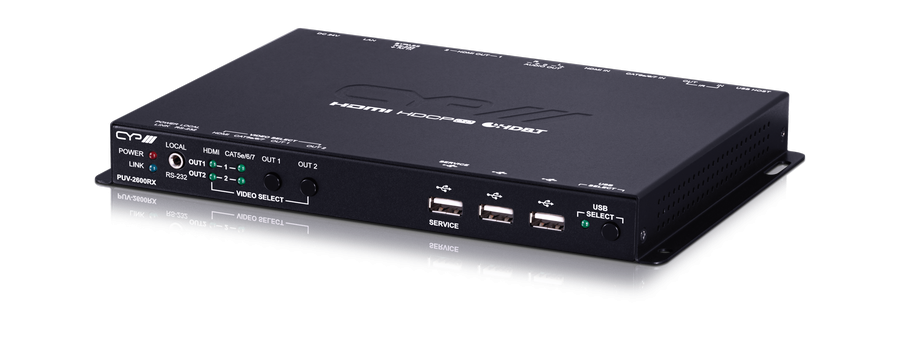

The PUV-2600RX HDBaseT 2.0 receiver is designed for use in environments that require a wide range of flexibility when it comes to inputs, outputs, and control. With a 2 by 2 matrix arrangement of HDBaseT & HDMI inputs and dual HDMI outputs this Receiver can handle a variety of source routing scenarios. The HDMI input and outputs support resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) while the HDBaseT input supports resolutions up to a maximum of 4K@60Hz (YUV 4:2:0, 8-bit). A balanced analogue stereo audio breakout is also provided (LPCM 2.0 sources only) allowing audio from the receiver to be integrated with local amplifeir or active speakers. The HDBaseT input not only supports video and audio but also bidirectional Ethernet, RS-232, USB, and IR.

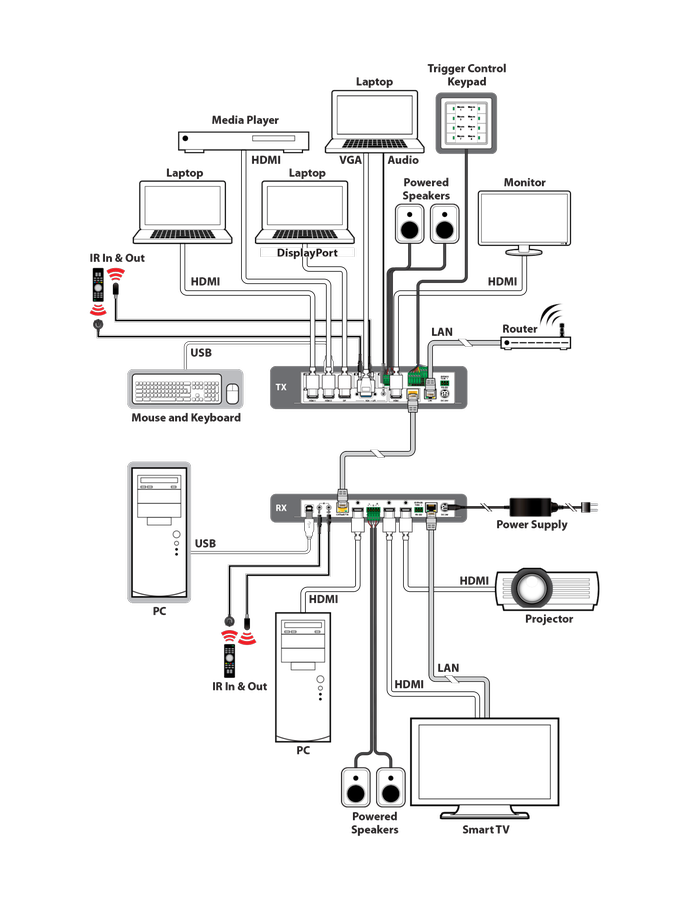

When paired with the EL-2600V (Not Included), up to 3 switchable USB 2.0 host (Type-B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to up to 6 USB 2.0 (Type-A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bidirectional, and highly flexible KVM or interactive display configuration (Note: Only 1 USB host may be active at a time).
The PUV-2600RX can provide 48V PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (compatible Transmitters only), allowing for greater flexibility within different installation scenarios. This unit is controllable via front-panel controls, WebGUI, Telnet, and RS-232.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

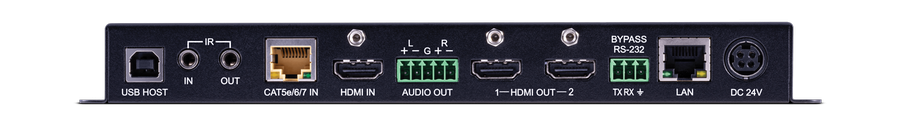

Inputs:
1 x HDMI female
1 x RJ45 female (HDBaseT)
1 x RJ45 female (Ethernet)
1 x 3,5mm Klinke female (IR)
1 x USB-B female (Host)
1 x 3,5mm Klinke female (RS232)
Outputs:
2 x HDMI female
1 x Phoenix 5 Pin female (Stereo Audio)
1 x Phoenix 3 Pin female (RS232)
1 x 3,5mm Klinke female(IR)
Control options:

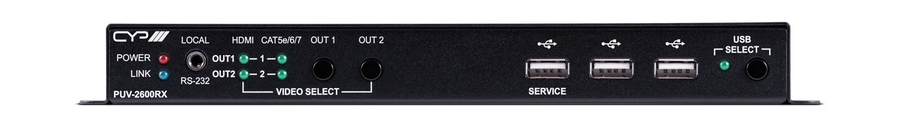

Frontpanel
Resolutions supported:(HDBaseT)
VGA bis WUXGA, 480i bis 1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
(HDMI)
bis 4K@60Hz (4:4:4, 8-bit
Formats supported:
Video: HDBaseT2.0, HDMI2.0, HDCP1.4/ 2.2 und DVI 1.0
Audio: Balanced analog Audio, digital Audio (LPCM 2.0, 5.1, 7.1, Bitstream & HD Bitstream audio formats)
