CAT System (HDBaseT) DVI/ Audio/ 2xLAN/ RS232/ IR/ PoE 100m PU-DVI1109-KIT
PUDVI1109KIT
Allows the transmission of a DVI (max. 4k, 2k, 1920x1200 and 1080p, Audio, LAN, IR and RS232 tw signals with 1UTP CAT5e (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology 5Play. Full HDCP compatible. Transmission of 4k, 2k, 1920x1200 or 1080p@60Hz. Receiver requires no external power supply (PoE).
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

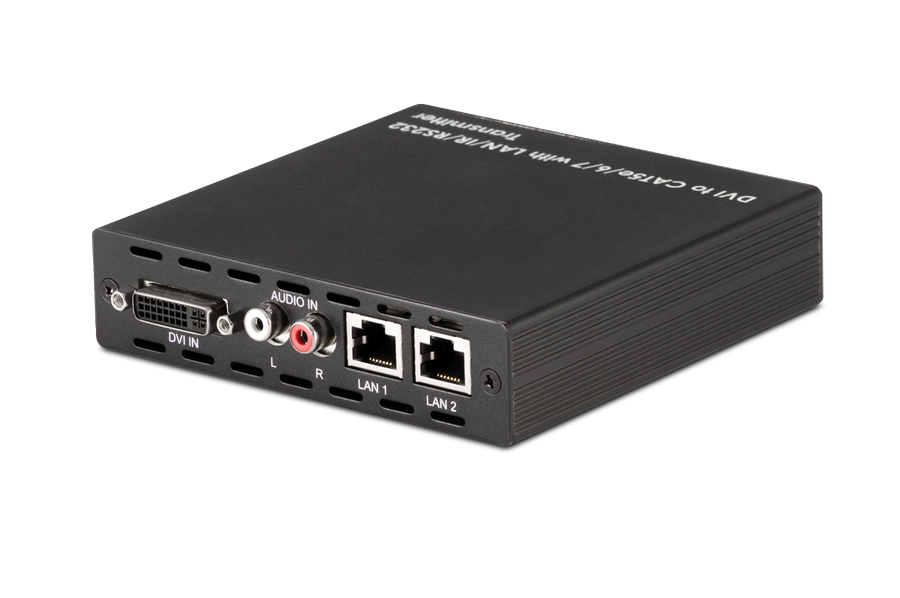

Transmitter

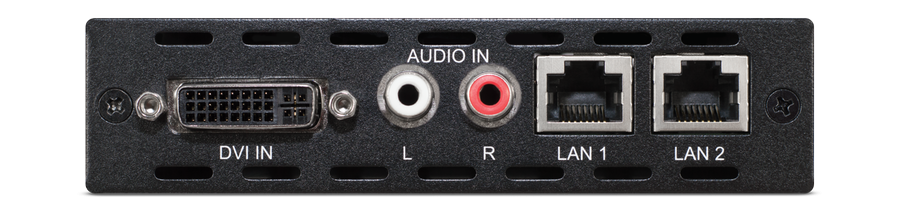

Inputs:
1 x DVI female
2 x RCA female
2 x RJ45 female (LAN (I/O) IP)
1 x 9 Pin D-Sub RS232 female
1 x 3,5mm jack female for IR
Outputs:
1 x RJ45 female

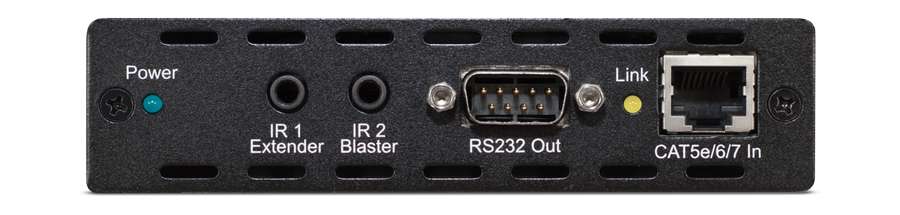

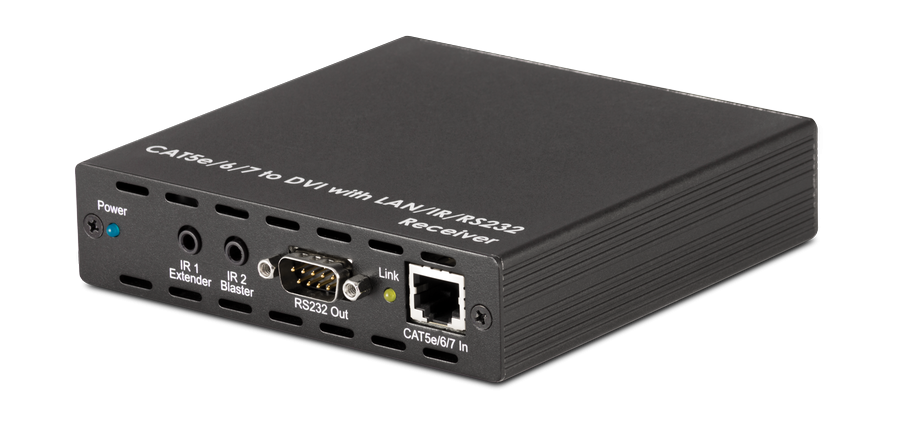

Receiver
Inputs:
1 x RJ 45 female

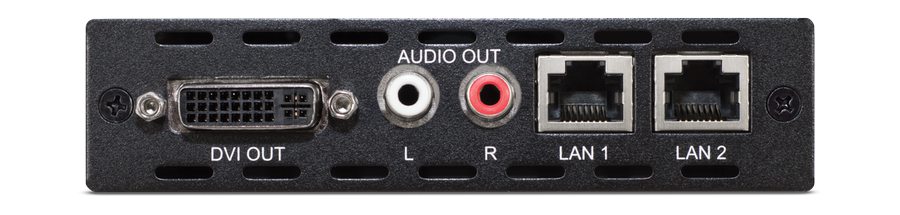

Outputs:
1 x DVI female
2 x RCA female
2 x RJ45 female (LAN (I/O) IP)
1 x 9 Pin D-Sub RS232 plug
1 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: DVI, HDMI, HDCP
Audio: 7.1CH, Dolby TrueHD & DTS-HD
