CAT System (HDBaseT) HDMI 2K,4K/ LAN/ RS232/ IR/ two way PoE 100m PU-607BD-KIT
PU607BDKIT
Allows the transmission of a HDMI (max. 4K,2K and 1080p) incl. audio or DVI signal, HDMI, CEC, LAN, IR and RS232 tw signals with 1UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology 5Play. Full HDCP compatible. Transmission of 4k, 2k or 1080p@60Hz. Transmitter or Receiver requires no external power supply (PoE).
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

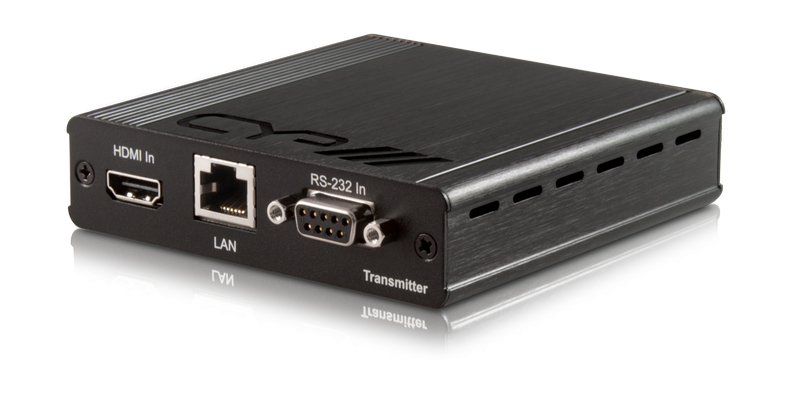

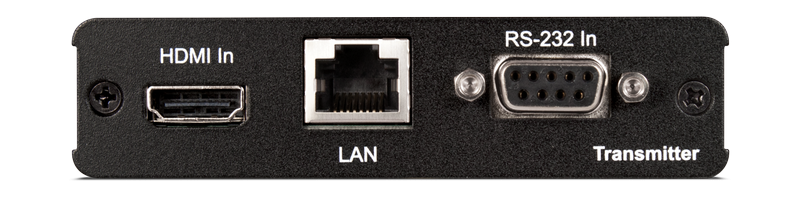

Transmitter
Inputs:
1 x HDMI female
1 x RJ45 female (LAN (I/O) IP)
1 x 9 Pin D-Sub RS232 female
1 x 3,5mm jack female for IR
Outputs:
1 x RJ45 female

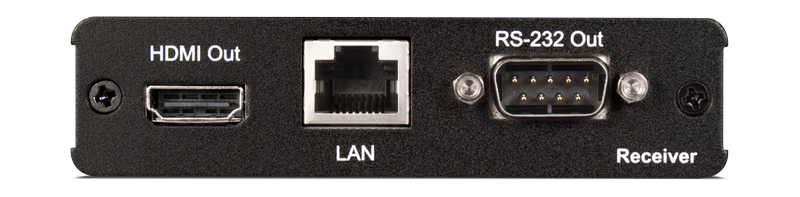

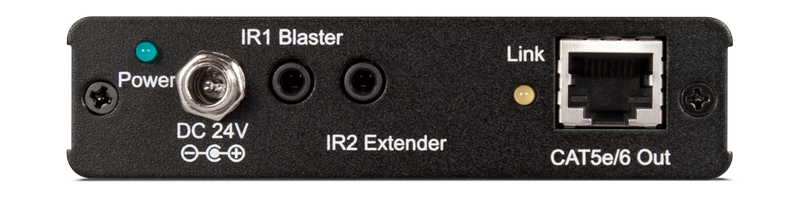

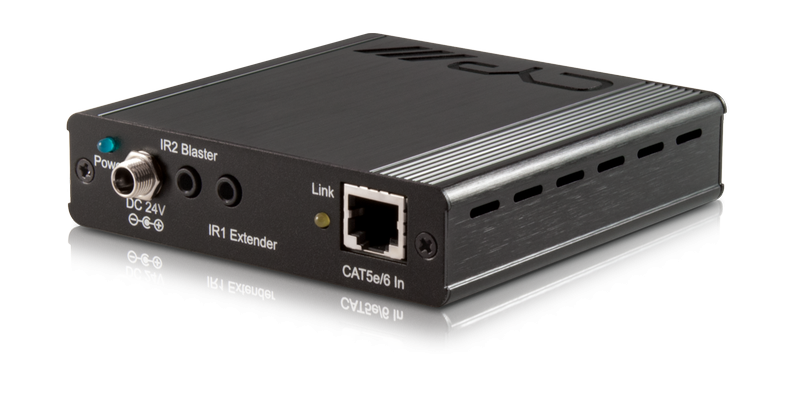

Receiver
Inputs:
1 x RJ 45 female
Outputs:
1 x HDMI female
1 x RJ45 female (LAN (I/O) IP)
1 x 9 Pin D-Sub RS232 plug
1 x 3,5mm jack female for IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1, 2.2 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD
