CAT system USB3.1/USB2.0/USB1.1 4 Port 100m Raven 3104

Hersteller

3104

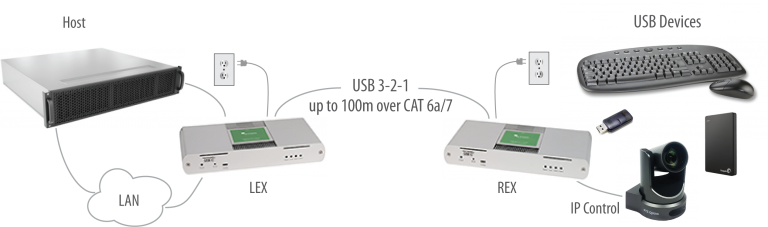

The Raven 3104 system transmits a Hi-Speed USB3.1 (up to 5Gbps), USB2.0 (up to 480 Mbps) & USB1.1 (Up to max. 12 Mbps) over 1 CAT6a/7 cable up to 100m. Support by each USB port by the receiver 1,2A. Max. 30 USB devices Supports the following PC systems: Windows, Mac OS and Linux

€ 1.350,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

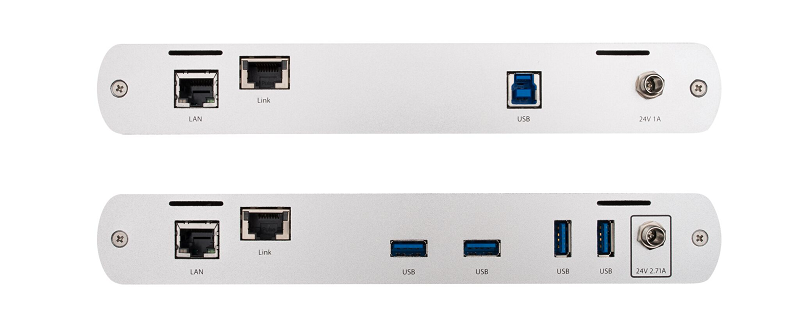

Transmitter
Inputs:
1 x USB Typ B female
1 x RJ45 LAN female
Outputs:
1 x RJ45 CAT female

Receiver
Inputs:
1 x RJ45 CAT female
Outputs:
4 x USB Typ A female
1 x RJ45 LAN female
Output power at the Receiver:
4 x 1,2A (5A total shared)
Formats supported:
USB3.1 (Gen 1), 2.0, 1.1

Producer
Icron
Product
3104
Gehäuse
Metall
Weight (kg)
2,67
Color
Schwarz
Power supply type
Extern
Stromversorgung
LEX: 24V, 1A REX: 24V, 2,71A
Operating
0° C - + 45° C
Abmessungen BxHxT mm
232,1x33x137,3 mm
Artikel Nr.
6953
