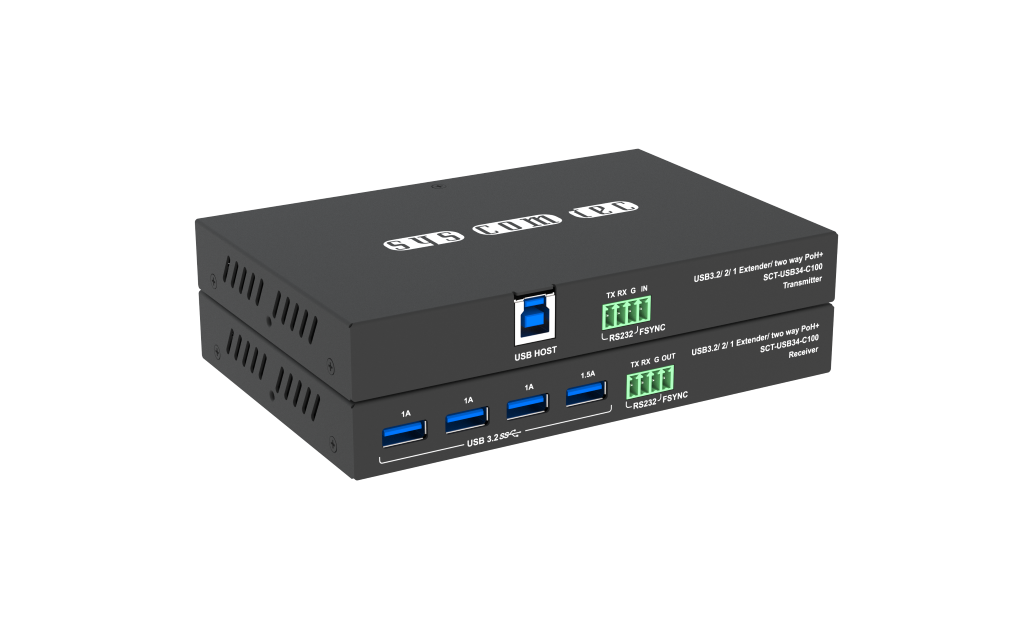

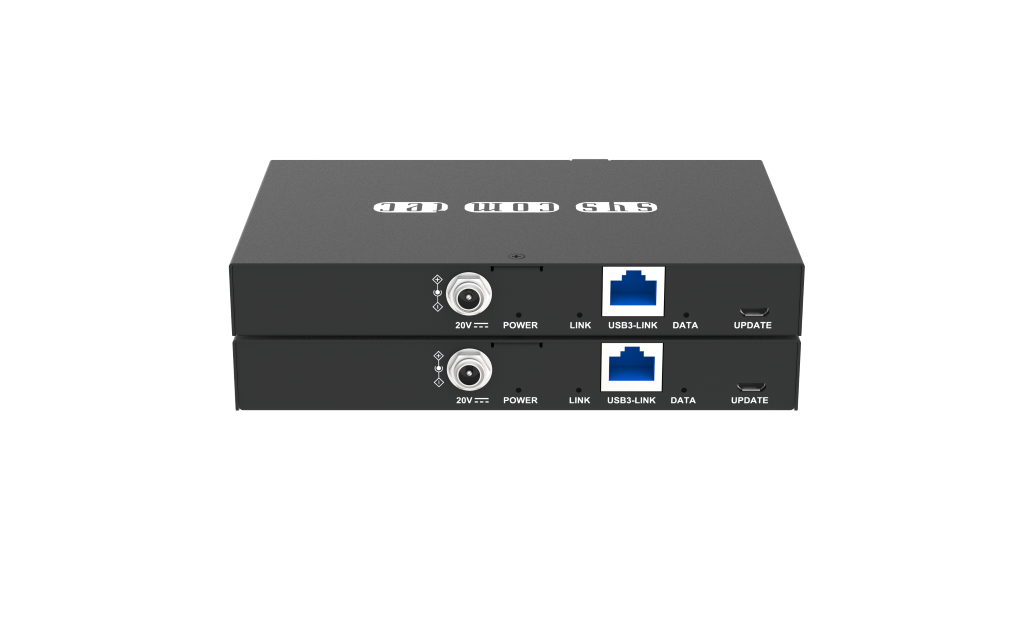

CAT System USB3.2/USB2.0/USB1.1 4 Port 100m SCT-USB34-C100
SCTUSB34C100
The SCT-USB34-C100 system transmits a Hi-Speed USB3.2 Gen 1 (up to 5Gbps), USB2.0 (up to 480 Mbps) & USB1.1 (Up to max. 12 Mbps) over 1 CAT6a/7 cable up to 100m. Support by the Receiver USB Ports 3x1A & 1x1,5A.Supports the following PC systems: Windows, Mac OS and Linux. Special features for Google Hangouts, USB cameras & Capture Devices. Support for Isochronous USB 3 Transactions. wo-way. PoH + module, only needs to connect one power adapter at either end.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

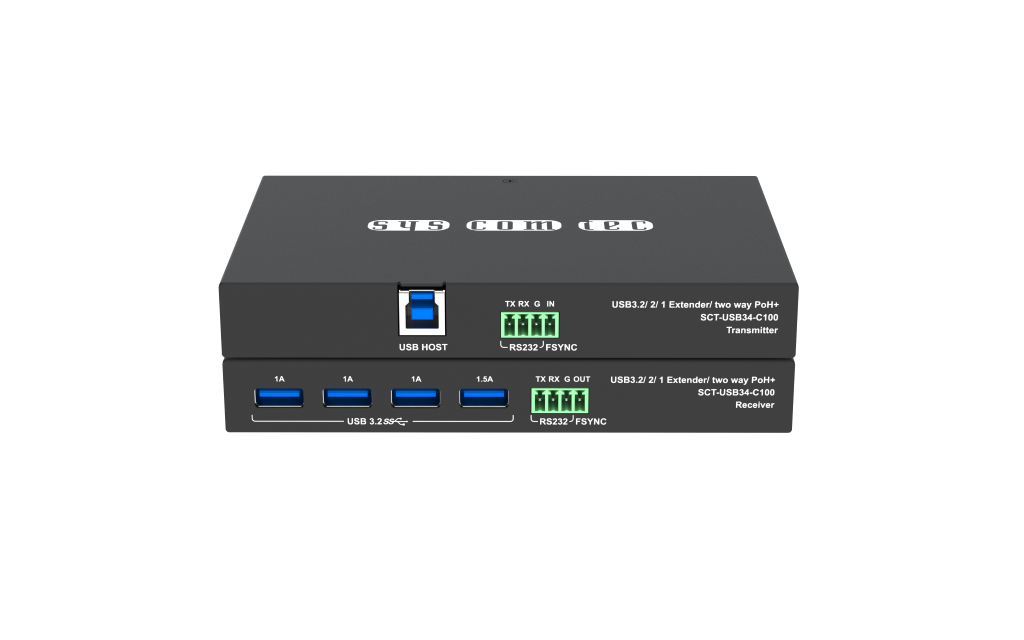

Transmitter
Inputs:
1 x USB3 Typ B female
1 x 4 Pin Phoenix RS232 female
Outputs:
1 x RJ45 CAT female
Receiver
Inputs:
1 x RJ45 CAT female
Outputs:
4 x USB Typ A female
1 x 4 Pin Phoenix RS232 female
Output power at the Receiver:
3 x 1A & 1 x 1,5A
Formats supported:
USB3.2 Gen 1, 2.0, 1.1 (Control, Interrupt, Isochronous und Bulk)
