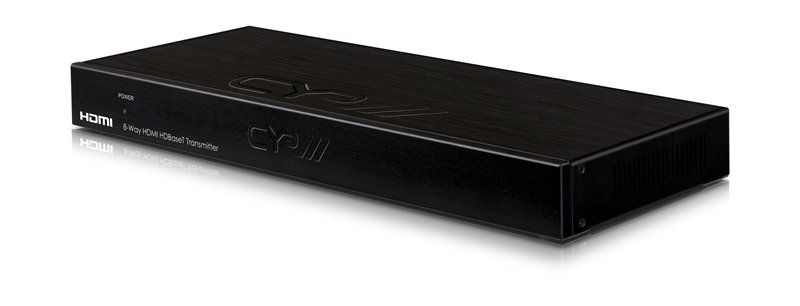

CAT Transmitter 8 Port (HDBaseT) HDMI/ PoE 100m PU-8H8CTX
PU8H8CTX

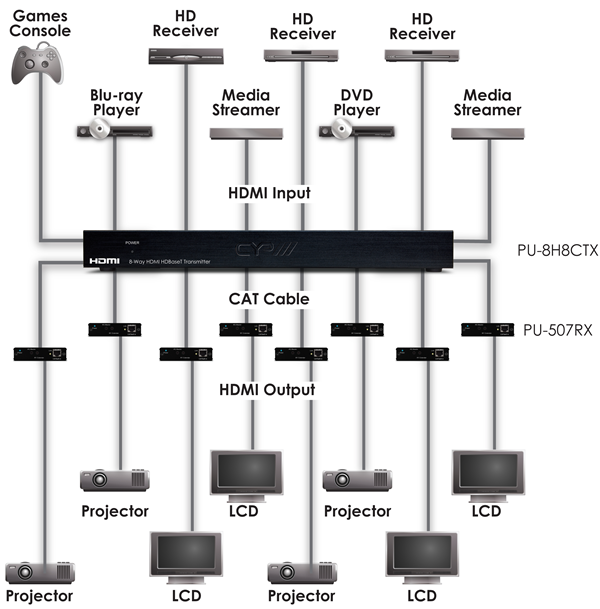

Allows the transmission of 8 HDMI signals as HDBaseT signal. Each signal can be transmitted up to 100m over CAT5 or CAT6. Can be used in conjunction with a HDBaseT matrix or distributor. Alternatively, each signal can be converted back to an HDMI signal with an HDBaseT receiver. Supports PoE (Power over Ethernet) for compatible receivers.
Preis auf Anfrage
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
8 x HDMI female (8x uncompressed AV and data)
Outputs:
8 x RJ45 female (HDBaseT)
Resolutions supported:
Up to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI, DVI, CEC, HDCP
Audio: Dolby TrueHD & DTS-HD Master Audio + LPCM
Producer
CYP Europe
Product
PU8H8CTX
Gehäuse
Metall
Weight (kg)
3,54
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V / 6,25A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
434 x 45 x 182
Artikel Nr.
4879
