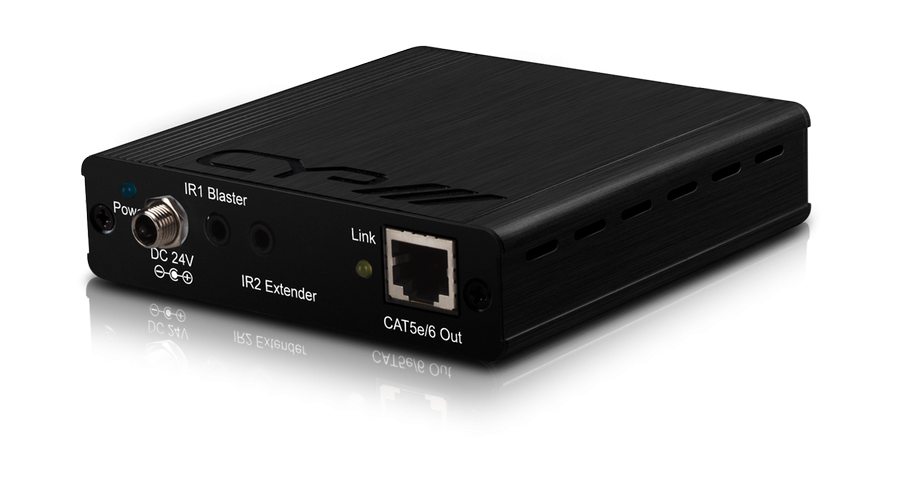

CAT Transmitter (HDBaseT) HDMI 2K,4K/ LAN/ RS232/ IR/ PoE 100m PU-507-TX
PU507TX

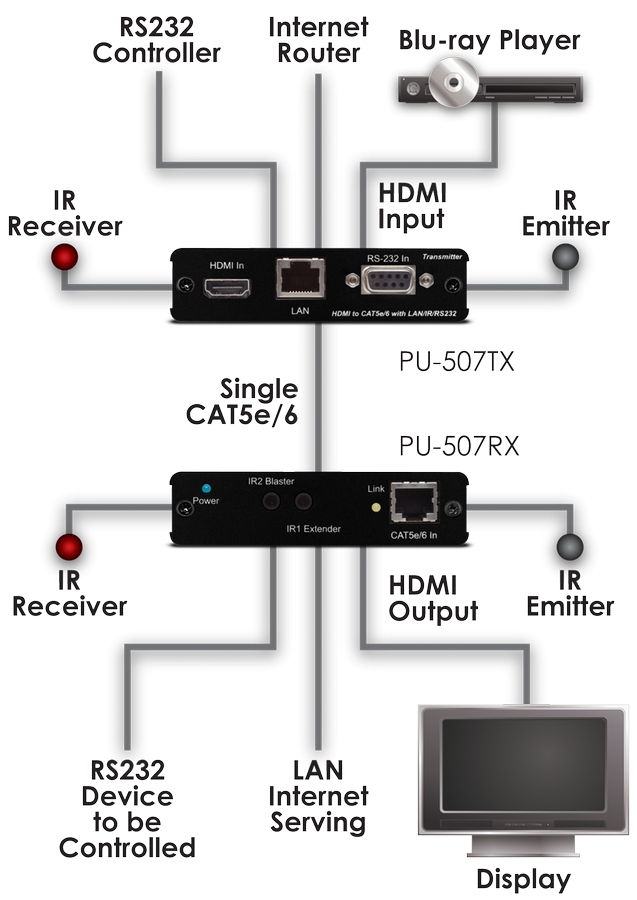

This advanced device is capable of transmitting pure digital HDMI signals (max. 4k, 2k and 1080p) incl. audio or DVI signal, HDMI, CEC, IR and RS232 tw signals with 1UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. Only in conjunction usable with PU-507-RX. Full HDCP and PoE compatible. Transmission of 4k, 2k or 1080p@60Hz.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

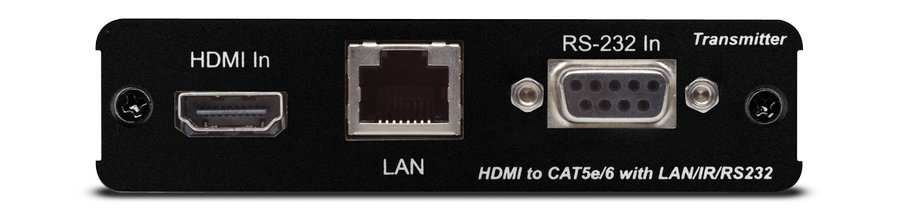

Inputs:
1 x HDMI female
1 x D-Sub 9-Pin female for RS232
1 x 3,5mm jack female for IR
1 x RJ45 feamle LAN

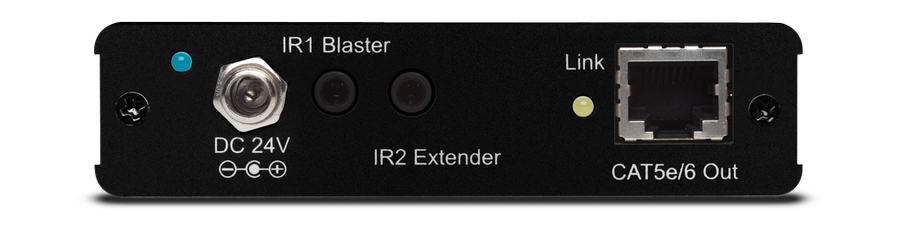

Outputs:
1 x RJ45 (HDBaseT) female
1 x 3,5mm Klinken IR female
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p, 2K, 4K
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1, 2.2 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD
