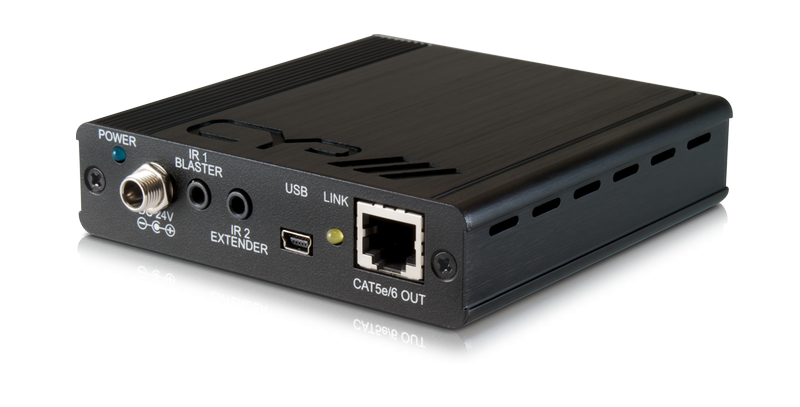

CAT Transmitter (HDBaseT) HDMI 2K,4K/ LAN/ RS232/ IR/ PoE 100m PU-507TX-1H
PU507TX1H
This advanced device is capable of transmitting pure digital HDMI signals (max. 4k, 2k and 1080p) incl. audio or DVI signal, HDMI, CEC, IR and RS232 tw signals with 1UTP CAT5 (up to 80m) or CAT6/7 (up to 100m) cable with HDBaseT technology. The transmitter have also a HDMI loop output. Only in conjunction usable with PU-507-RX. Full HDCP and PoE compatible. Transmission of 4k, 2k or 1080p@60Hz.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI female
1 x 3,5mm jack female for RS232
1 x 3,5mm jack female for IR
1 x RJ45 feamle LAN

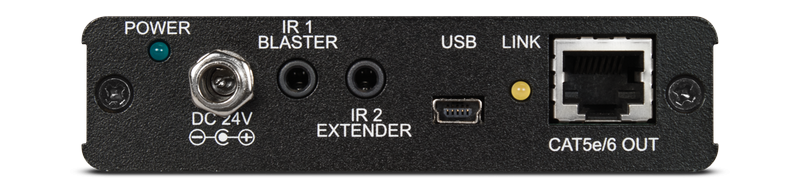

Outputs:
1 x HDMI female
1 x RJ45 (HDBaseT) female
1 x 3,5mm Klinken IR female
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i to 1080p
Formats supported:
Video: HDMI1.4 (10,2 Gbps), 3D, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit), CEC
Audio: Audio7.1, Dolby TrueHD, DTS-HD
