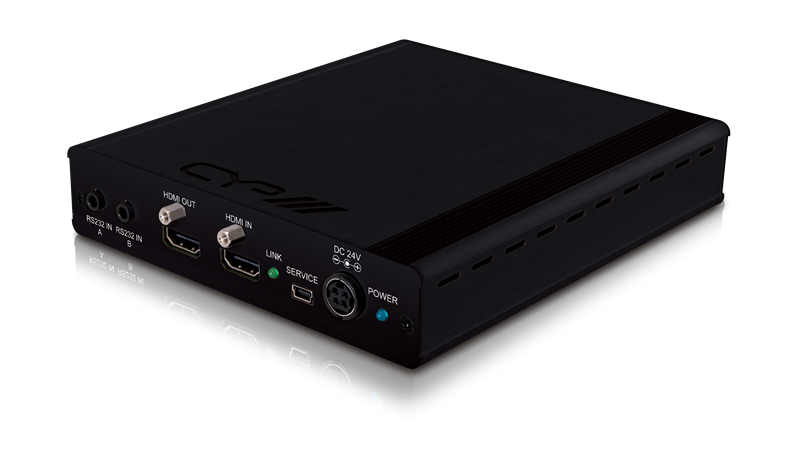

CAT Transmitter/ Splitter 1:2 (HDBaseT) HDMI 2K,/ LAN/ RS232/ IR/ PoE PU-1H2HBTE
PU1H2HBTE

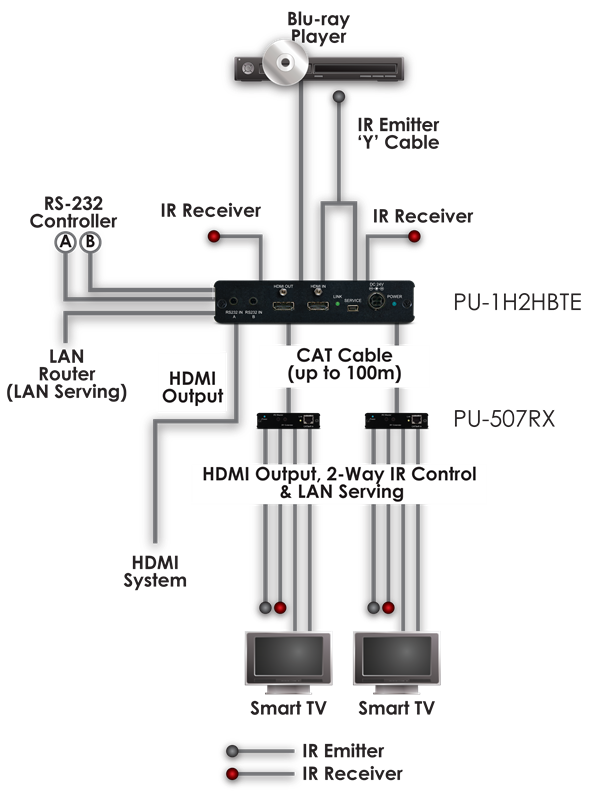

Accepts one HDMI1.4 input and splits this signal to two HDBaseT and one HDMI outputs. Transmission from HDMI, LAN, PoE, IR and RS232 up to 100m via CAT5e, CAT6 and CAT7 and max. 10.2 Gbps. PU-507-RX, PU-507-RXSCD, PU-507-RX2H, PU-507-RX2HCD, PU-HBTE-ZE and PU-507-WPRX Receivers are recommended to utilise the full 5-Play functionality of the HDBaseT™ outputs of this device.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

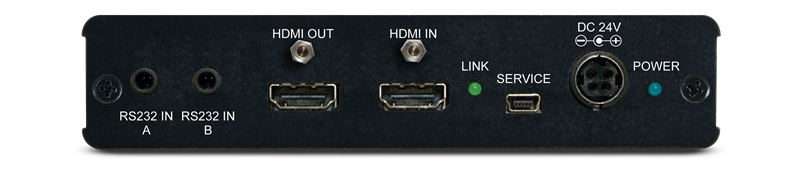

Inputs:
1 x HDMI female
2 x Mini Jack 3,5 mm for IR
1 x Mini Jack 3,5 mm for RS232
1 x RJ45 LAN for firmware update or control
1 x Mini USB for service

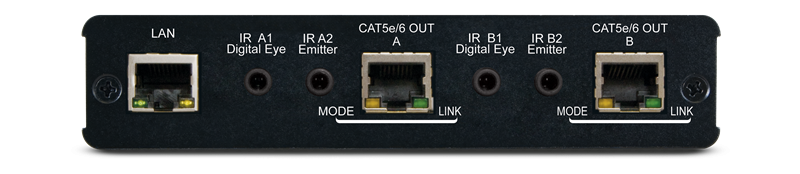

Outputs:
1 x HDMI female
1 x RJ45 LAN HDBaseT
2 x Mini Jack 3,5 mm for IR
1 x Mini Jack 3,5 mm for RS232
Control options:
CEC, RS232, LAN, Mini-USB oder IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI1.4, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit) max. 10.2 Gbps pro Kanal
Audio: 7.1CH & Dolby TrueHD, DTS-HD
