CAT Transmitter/ Splitter 1:3 (HDBaseTLITE) HDMI 2K,4K/ IR PU-1H3HBTPL
PU1H3HBTPL

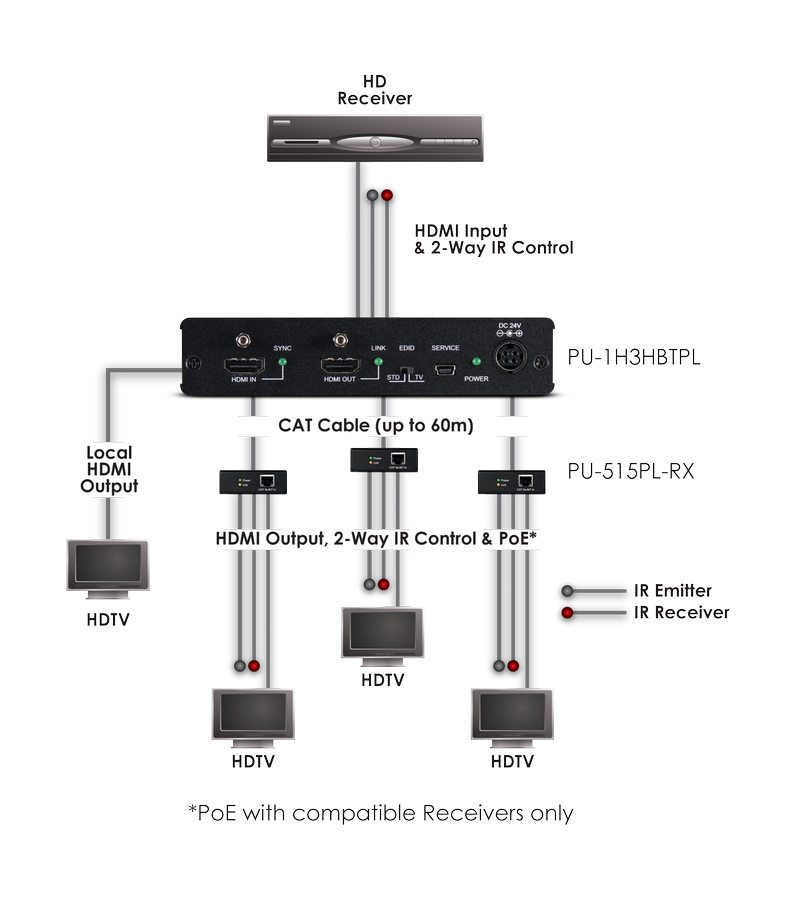

Accepts one HDMI1.4 input and splits this signal to three HDBaseT LITE and one HDMI outputs. Transmission from HDMI and IR up to 60m via CAT5e, CAT6 and CAT7 and max. 10.2 Gbps. PU-515PL-RX Receivers are ecommended to utilise the full functionality of the HDBaseT LITE outputs of this device. The unit deliver Power for the PU-515PL-RX.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI female
2 x Mini Jack 3,5 mm for IR
1 x Mini USB for service
Outputs:
1 x HDMI female
3 x RJ45 LAN HDBaseT
2 x Mini Jack 3,5 mm for IR
Control options:
CEC, Mini-USB oder IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI1.4, HDCP 1.1 und DVI 1.0 (Deep Color 10 & 12 bit) max. 10.2 Gbps pro Kanal
Audio: 7.1CH & Dolby TrueHD, DTS-HD
