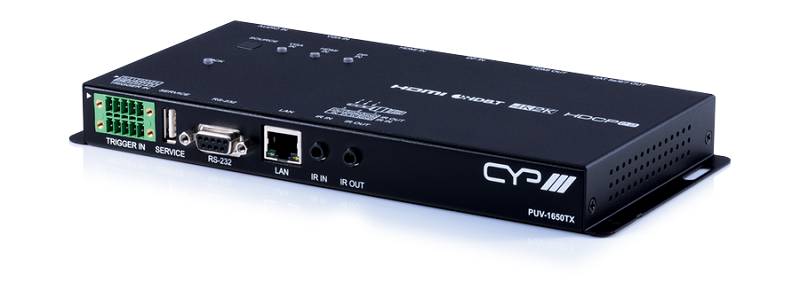

CAT Transmitter/ Switcher DP, HDMI, VGA/ Audio to HDMI/ HDBaseT PUV-1650TX
PUV1650TX
The PUV-1650TX has been designed with collaboration in mind, it-s the perfect turnkey solution for extending and switching video in commercial applications. The PUV-1650TX/RX not only provide total AV conversion and extension, they also add a level of system control throughout the meeting space. The unit includes HDMI, DisplayPort & VGA inputs offering total meeting space compatibility. Sources can be transmitted upto 100m (1080p) and 4K@60Hz (4:2:0 8-bit) can be transmitted over 70m over CAT 6/7 cable. The compatible receiver can scale the HDBaseT video source or local HDMI input to match the connected displays resolution requirements. The PUV-1650 differs from other HDBaseT extender sets with its additional layer of control. This unit provides an interface for a remote control keypad or trigger interface which could be placed in a variety of installation scenarios (Lecterns, meeting room tables, podiums, etc...). This interface allows the user to control a wide range of devices and macro commands from the touch of a button over the local network. Complimentary control products within the CYP range include the CR-TG1 & CR-KP products. The TX also features -Top Panel- controls for direct control of the device (with OSD) and the added benefit of a WebGUI, RS232 and LAN control. Using the WebGUI interface timed events can be stored on the unit for added system control.A key feature of the PUV-1600 series is that the power is sent to the TX from the mains powered RX. This offers additional flexibility when integrating and designing meeting room solutions.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

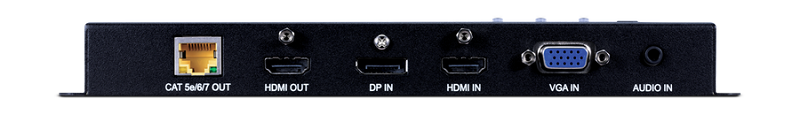

Inputs:
1 x HDMI
1 x DisplayPort
1 x 15 pin Sub D HD (VGA)
1 x analog Audio
1 x IR
1 x RS232
1 x RJ45 (Ethernet)
Outputs:
1 x RJ45 (HDBaseT)
1 x HDMI
1 x IR
Control options:
Input scan function, Frontpanel, Contact closure, Ethernet, RS232
Inputresolutions supported:
VGA to WUXGA, 480i to 1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP2.2 und DVI 1.0
Audio: analog Audio
