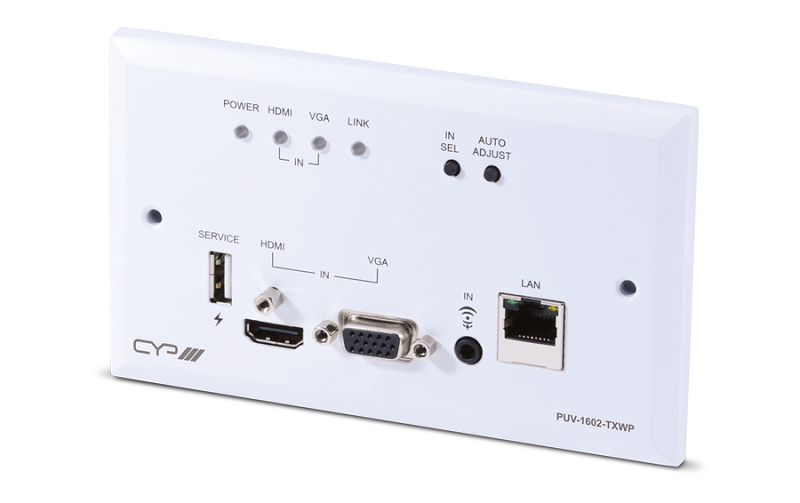

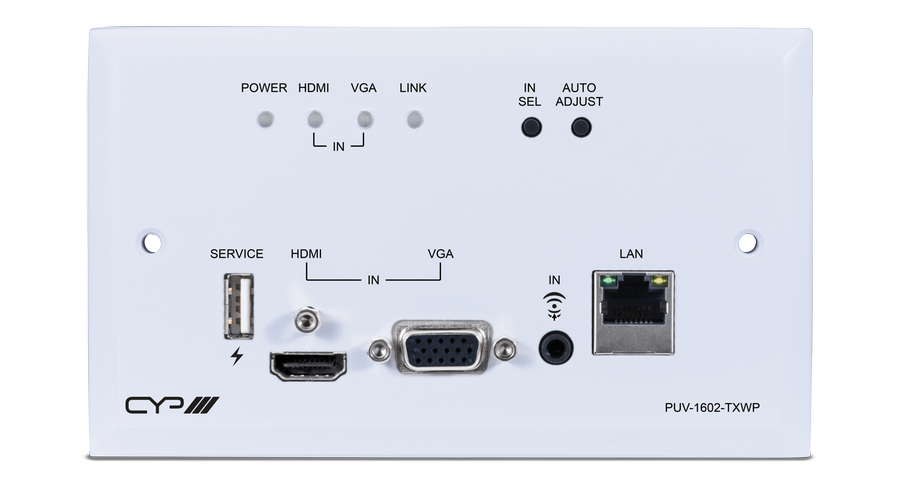

CAT Transmitter/ Switcher HDMI, VGA/ Audio to HDBaseT PUV-1602TXWP
PUV1602TXWP

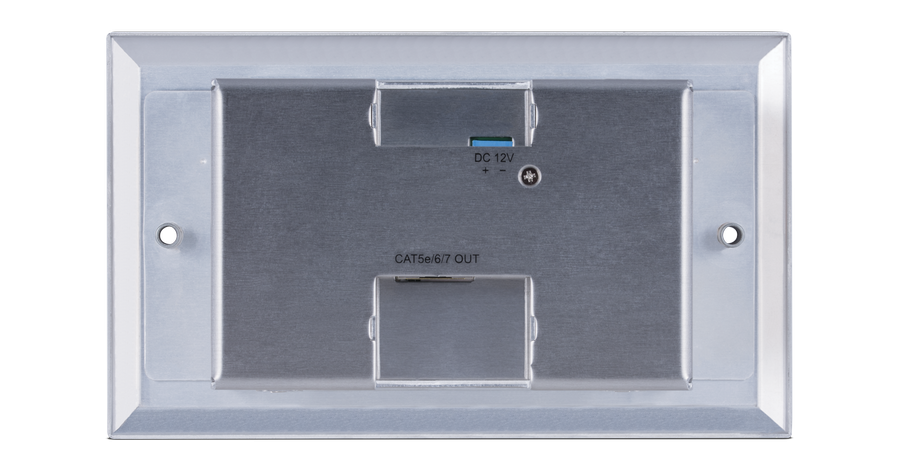

The PUV-1602TXWP Wallplate Transmitter is a HDMI/VGA switch which allows uncompressed HDMI and VGA signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of analogue audio em-bedding, RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres to a compatible PUV 1600 Series Receiver. This unit also supports automatic input detection between the HDMI and the VGA inputs using hot plug detection, offering the user -hands free- control of the device. Despite the 10.2Gbps bandwidth limitation of HDBaseT this clever transmitter will automatically convert signals of higher bandwidths ensuring any HDMI 4K signal can be passed through the HDBaseT system. The unit also features push button control on the front of the panel. The unit is powered by PoH supplied by a compatible PUV-1600 series receiver. The wall plate is designed to integrate within a standard UK double gang back box.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI
1 x 15 pin Sub D HD (VGA)
1 x analog Audio
1 x RJ45 (Ethernet)
Outputs:

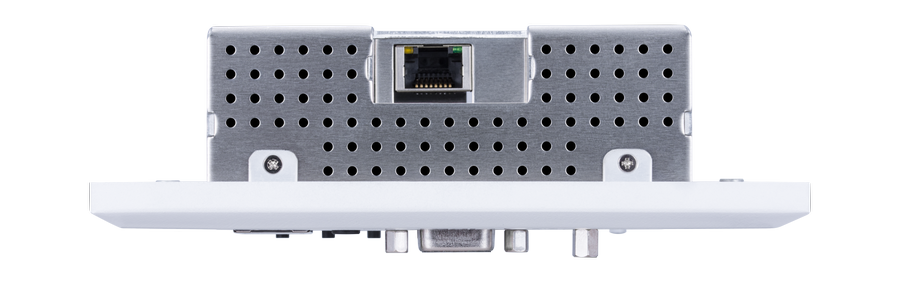

1 x RJ45 (HDBaseT)
Control options:
Autoswitching, Frontpanel, Ethernet, RS232
Inputresolutions supported:
VGA to WUXGA, 480i to 1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP2.2 und DVI 1.0
Audio: analog Audio
