CAT TX (HDBT), Scaler HDMI UHD,4K/ LAN/ RS232/IR/ PoH 100m PUV-1550STX
PUV1550STX
Allows the transmission of HDMI/ HDCP2.2 (max. UHD/ 4K 4:2:0/ 1080p@60Hz), Audio, LAN, IR and RS232 tw over one CAT6a/ CAT7 (up to 100m) cable. The integrated scaler enables to adjust the output resolution to the sink. Different Resolution on the HDMI and HDBaseT out possible. On Board EDID Management. Support "5 Play Technology".
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

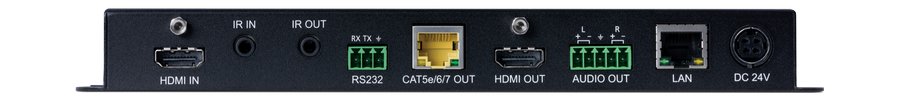

Input:
1 x HDMI female
1 x 3pol. Terminal Block (RS232)
1 x 3,5mm Jack (IR)
1 x RJ45 female (LAN)
Output::
1 x HDMI female
1 x RJ45 female (HDBaseT)
1 x 3,5mm Jack (IR)
1 x 5pol. Terminal Block (Audio out)
Supported Resolutions:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA and 480i up to 1080p and 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Supported Formats:
Video: HDMI, HDCP2.2 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio: 7.1CH & Dolby TrueHD and DTS-HD
