CAT TX/ Matrix 4x2 DP, HDMI2.0, VGA, Audio, USB auf HDMI, HDBaseT, Audio EL-2600
EL2600V
The EL-2600V presentation switcher is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The three most common video input interfaces (HDMI, DisplayPort, and VGA w/stereo audio) are included, providing the ultimate in source compatibility and flexibility. The HDMI and DisplayPort inputs support resolution/timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) which is converted, when appropriate and necessary, for transmission over HDBaseT. The selected source (video & audio) can be transmitted over Cat.6/7 cable up to 100 meters (at 4K@60Hz) along with bidirectional Ethernet, RS-232, USB, and IR. Due to the matrixing capability of this unit, an independent source may also be selected for output over the local HDMI output. The EL-2600V also includes a microphone input, with optional 48V/5V phantom power support, feeding directly into a DSP mixer, offering the complete presentation solution.

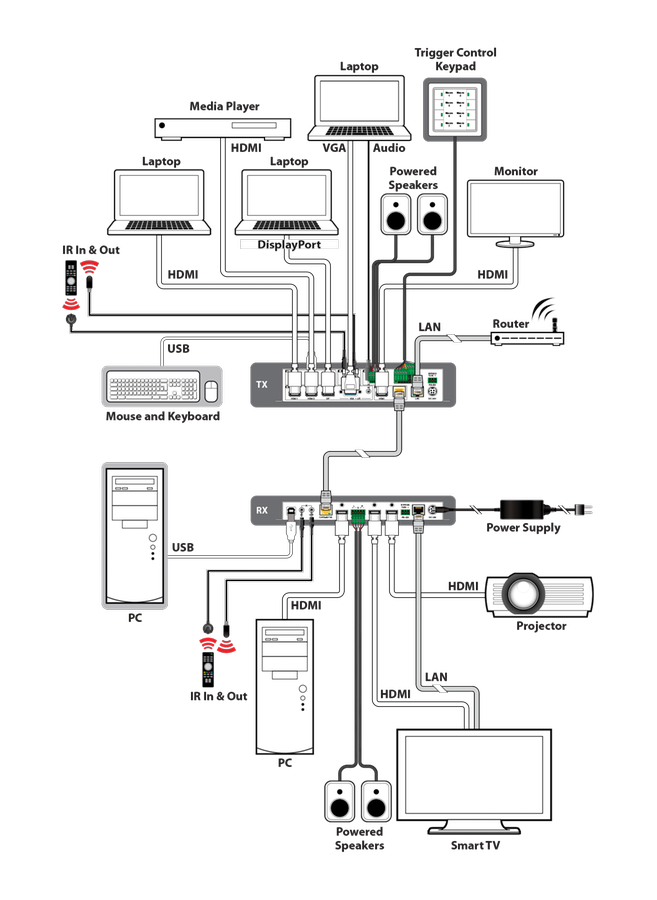

When paired with the PUV-2600RX (Not Included), up to 3 switchable USB 2.0 host (Type-B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to up to 6 USB 2.0 (Type-A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bidirectional, and highly flexible KVM configuration or interactive displays (Note: Only 1 USB host may be active at a time). This Transmitter also provides an interface for a remote control keypad, or trigger interface, which can be easily installed within a lectern or table in a conference room or classroom.

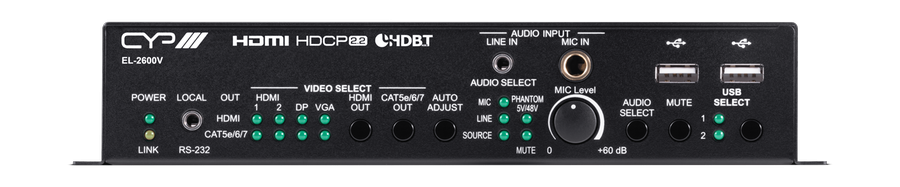

The EL-2600V can be powered locally using a standard power supply, or it can be powered by 48V PoH (Power over HDBaseT) provided by the PUV-2600RX (Not Included), allowing for greater flexibility within different installation scenarios. This unit is controllable via front panel controls, WebGUI, Telnet, Triggers, and RS-232.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

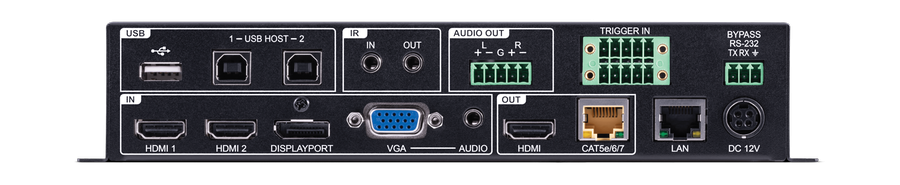

Eingänge:
1 x Display Port female
2 x HDMI female
1 x VGA female
2 x 3,5mm mini jack female (Stereo Audio)
1 x 6,3mm mini jack female (Mic Audio)
1 x 3,5mm mini jack female (IR)
1 x 3,5mm mini jack female (RS232)
1 x D-Sub 9 Pin female (RS232)
1 x RJ45 female (Ethernet)
1 x Phoenix 10 Pin female (Taster)
2 x USB-B female (Host)
Ausgänge:
1 x RJ45 female (HDBaseT)
1 x HDMI female
1 x Phoenix 5 Pin female (Stereo Audio)
1 x 3,5mm mini jack female (IR)
3 x USB-A female
Control options:
Frontpanel, Contact closure, Ethernet, RS232
Inputresolutions supported:
VGA to WUXGA, 480i to 1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0)
Formats supported:
Video: HDBaseT2.0, HDMI2.0, HDCP1.4/ 2.2 und DVI 1.0
Audio: balanced analog Audio, digitael Audio (LPCM 2.0, 5.1, 7.1, Bitstream & HD Bitstream audio formats)
