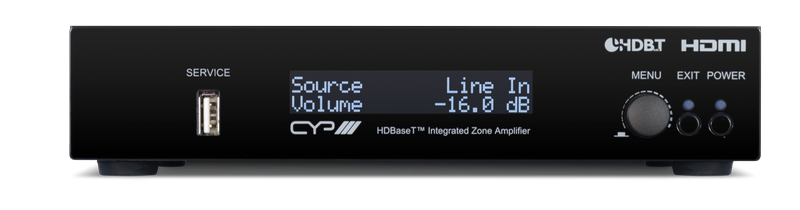

Controllable amplifier 2 x 30W/ switcher HDMI 2K,4K, HDBaseT 2x2 AU-A300-HBT
AUA300HBT
Audio amplifier 2 channel with 1 HDMI, 1 HDBaseT, 2 analoge, 2 digital. The amplifier switch the inputs to 1 HDMI, 2 digital, 1 analog and the Speaker Terminals. Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion. Supports PoE (Power over Ethernet) for connected compatible HDBaseT receivers
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

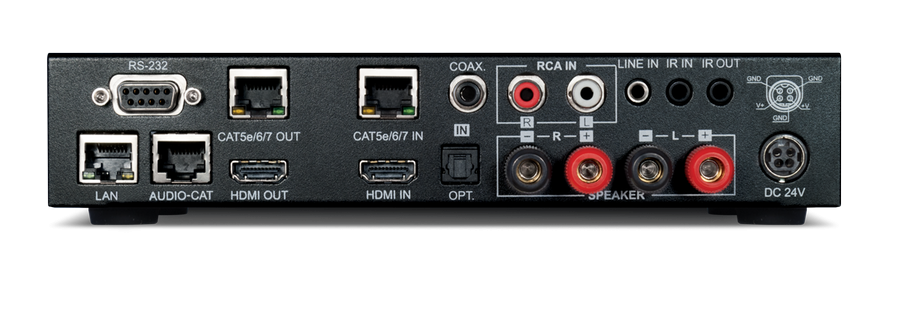

Inputs:
1 x HDMI female
1 x RJ45 feamle (HDBaseT)
1 x RJ45 female (CAT Audio)
1 x 3,5mm mini jack female
1 x 2 RCA female Stereo
1 x RCA female (SPDIF)
1 x Toslink female
Outputs:
1 x HDMI female
1 x RJ45 female (HDBaseT)
1 x 3,5mm mini jack female
1 x 2 RCA female Stereo
1 x RCA female (SPDIF)
1 x Toslink female
4 x Speaker Binding Posts
Control options:
Frontpanel, Ethernet, RS232, IR
Resolutions supported:
640x480 to 1920x1200 or 480i to 1080p
Formats supported:
Video: HDMI 1.3, HDCP 1.1 und DVI 1.0
Audio: digitale and analoge Audio (DAC / ADC),
Power: 2 x 30 Watt
