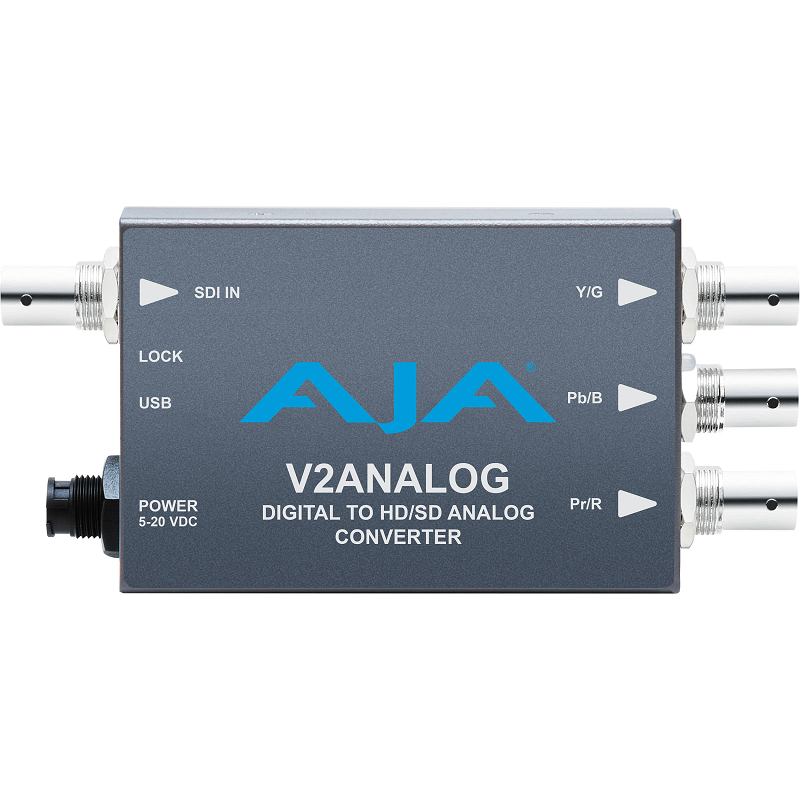

Converter HD/SD-SDI auf analog Video FBAS V2 Analog
V2Analog
V2Analog is a high-quality, cost-effective digital to analog video converter that’s an ideal solution for integrating analog equipment such as monitors and tape decks into digital workflows. V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE, EBU-N10), Betacam, or RGB component outputs or NTSC/PAL or Y/C (S-Video) composite outputs for complete integration into any workflow. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.
Note: V2Analog does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
technical specification:
Inputs: 1x BNC for HD/SD-SDI
Output: 3x BNC for analog Video
SDI Color Space: YPbPr (SMPTE or Betacam) and RGB
accept: 625i/50 PAL, 525/59,94 NTSC, 720p@50, 59,94 and 60 Hz,
1080i@50, 59,94 and 60 Hz, 1080p@ 23.98, 24, 25, 29.97, 30
