Converter HDCP2.2 to HDCP1.4 & Analyser HDCP, EDID, Colour Bandwidth XA-HDCP
XAHDCP
Converts HDCP2.2 signals to a lower HDCP format enabling AV content to be easily integrated into a system which uses non-HDCP2.2 compliant devices, thus eliminating the need to upgrade all devices in the signal path to be HDCP2.2 compliant. In addition to converting HDCP signals, the XA-HDCP can also analyse the content bandwidth, HDCP, EDID and Colourspace status of the inputted signal. This equalisation and repeater function enables the HDMI cable distance to be extended 5m from the output at UHD/ 4K resolutions.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:

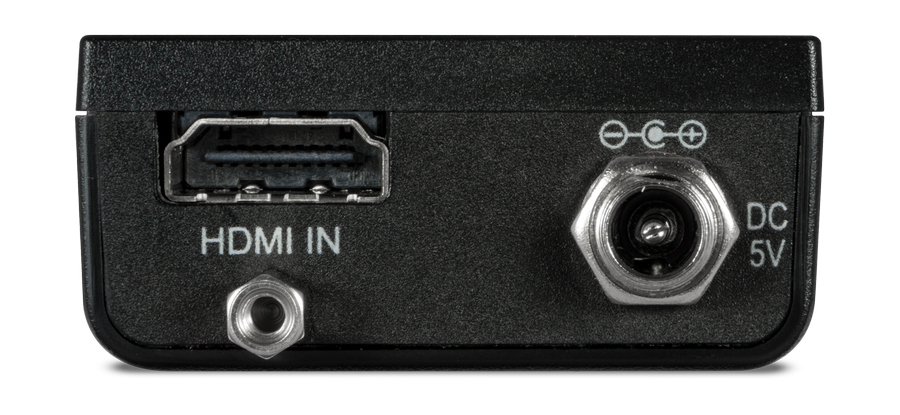

1 x HDMI female
1 x Mini-USB B female
Outputs:

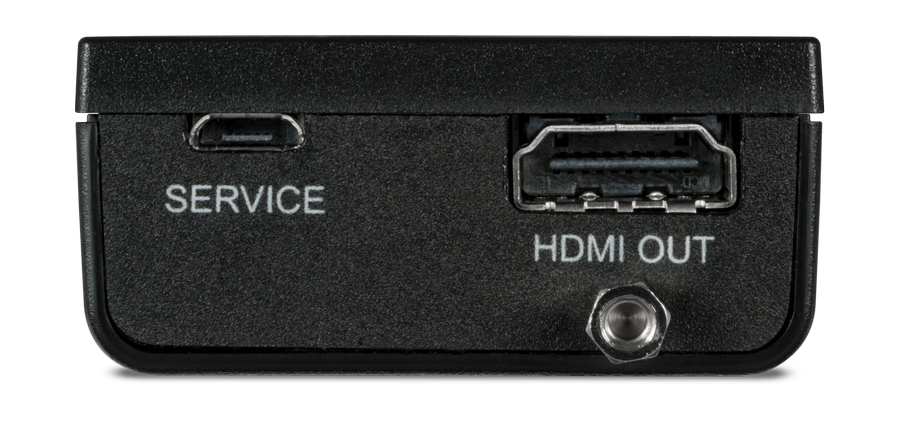

1 x HDMI female
Control options:
Frontpanel
Resolutions supported:
to UHD/ 4K
Formats supported:
Video: Video: HDMI2.0, HDCP2.2/1.4 and DVI 1.0
Audio:
