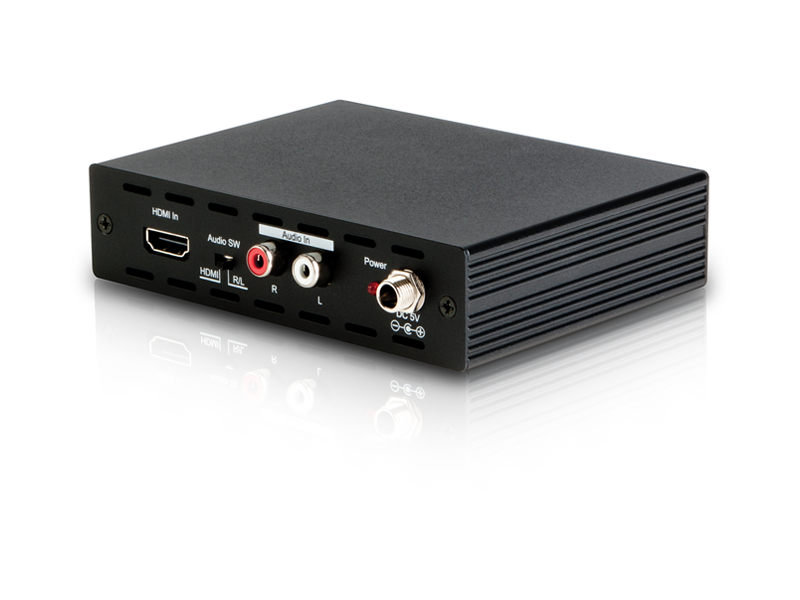

Converter HDMI to max. 3G-SDI PRO-H2-3GSDI
PROH23GSDI

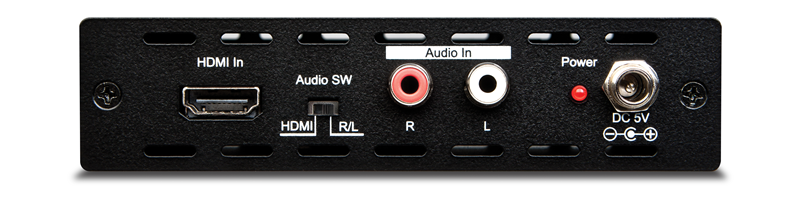

Inputs:
1 x HDMI female
2 x RCA female (1 x analog stereo L/R)

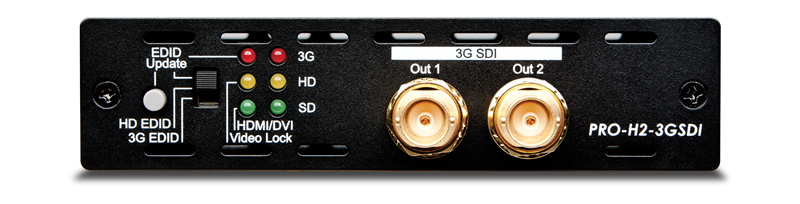

Outputs:
2 x SD / HD / 3G-SDI BNC female
Resolutions supported:
480i, 576i, 720p 50/60 Hz, 1080i 50/60 Hz, 1080p 50/60 Hz
Formats supported:
Video: HDMI, HDCP and DVI
Audio: digitales (embedded Audio uo to 8 channels PCM 48 KHz for HDMI), 2 channel analog Audio
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI female
2 x RCA female (1 x analog stereo L/R)
Outputs:
2 x SD / HD / 3G-SDI BNC female
Resolutions supported:
480i, 576i, 720p 50/60 Hz, 1080i 50/60 Hz, 1080p 50/60 Hz
Formats supported:
Video: HDMI, HDCP and DVI
Audio: digitales (embedded Audio uo to 8 channels PCM 48 KHz for HDMI), 2 channel analog Audio
