Converter HDMI2.0 & Audio to HDMI2.0/ UHD/ 4K/ HDCP2.2 AU-11CA-4K22
AU11CA4K22

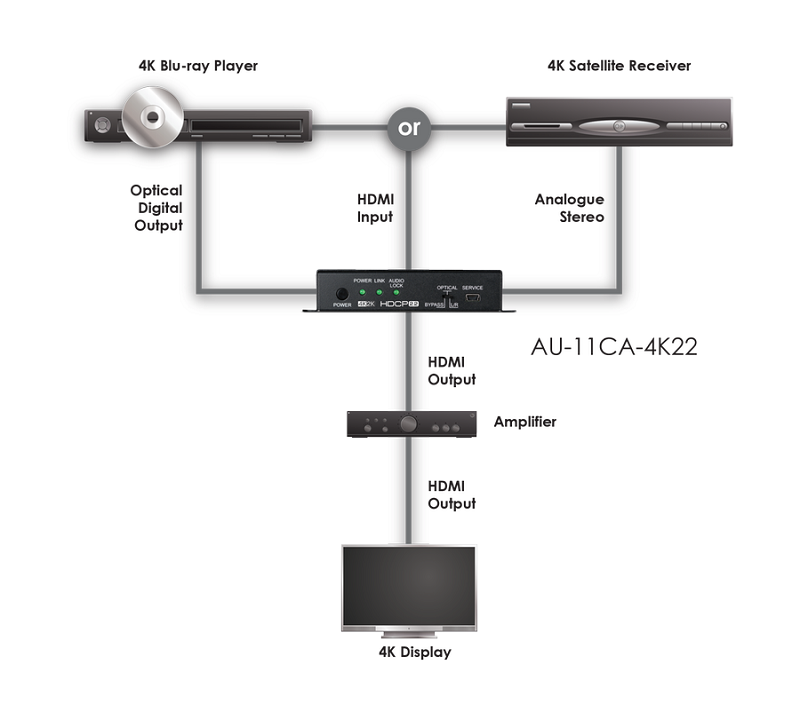

Converter/ Embedder for HDMI2.0, HDCP2.2 and a Toslink up to 5.1 Audio or an analog Stereo Audio to HDMI2.0, HDCP2.2 with embedded Audio out. The build in Repeater extend the HDMI signal from the Outpur with UHD/ 4K@60Hz up to 5m.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

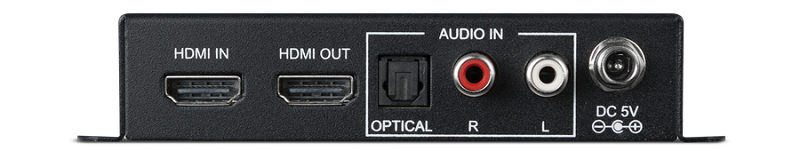

Inputs:
1 x HDMI female
1 x Toslink female
1 x 2 RCA female
Output:
1 x HDMI female

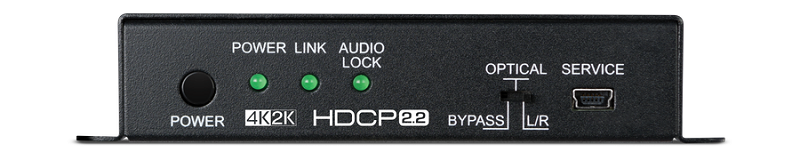

Control options:
CEC, Mini-USB (Service)
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@24, 25, 30, 50, 60Hz YUV4:4:4
Formats supported:
Video: HDMI2.0, HDCP2.2 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio (optical): LPCM Stereo, DTS and Dolby Digital
Audio (HDMI embedded): LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
Audio (analog): LPCM 2 Kanal
