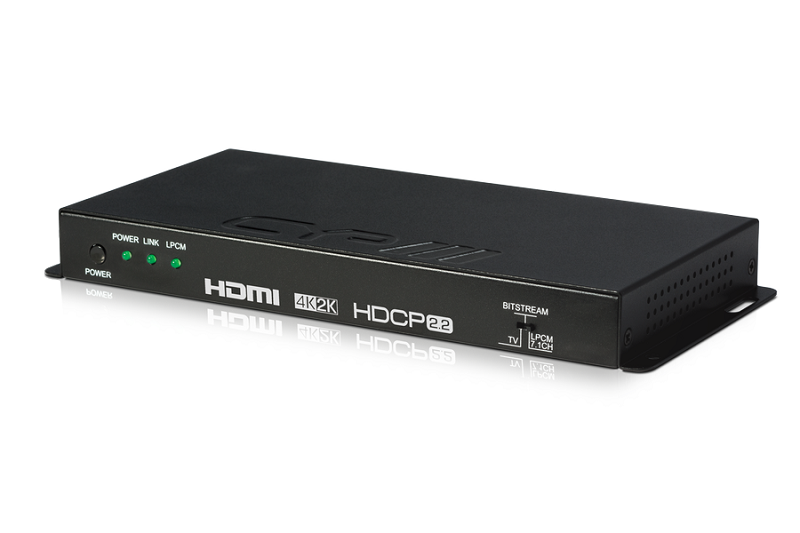

Converter HDMI2.0 to HDMI2.0/ UHD/ 4K/ HDCP2.2 & Audio AU-11SA-4K22
AU11SA4K22

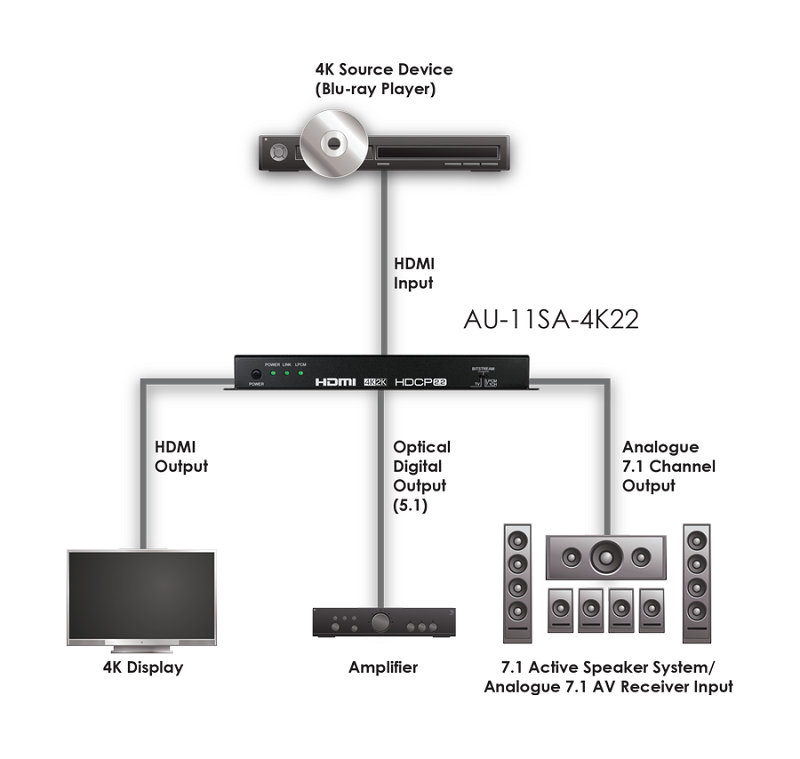

Converter/ Deembedder for HDMI2.0, HDCP2.2 to HDMI2.0, HDCP2.2 and a Toslink or analog Audio (Stereo Audio, 5.1, 7.1) out. The build in Repeater extend the HDMI signal with UHD/ 4K@60Hz up to 5m.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Input:
1 x HDMI female
Outputs:
1 x HDMI female
1 x Optical female
1 x 8 RCA female
Control options:
CEC, Mini-USB (Service)
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p and UHD/ 4K@24, 25, 30, 50, 60Hz YUV4:4:4
Formats supported:
Video: HDMI2.0, HDCP2.2 und DVI 1.0 (Deep Color 10 & 12 bit)
Audio (optisch): LPCM, Dolby Digital and DTS up to 5.1
Audio (HDMI embedded): Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio
Audio (analog): LPCM 2 Kanal, 5.1 and 7.1
