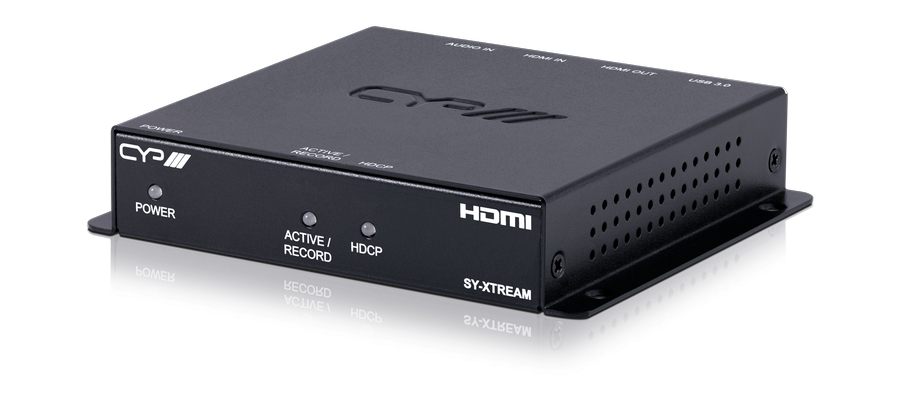

Converter HDMI2.0 UHD,4K/ Audio to USB3.0 SY-XTREAM
SYXTREAM
Converter for HDMI2.0 UHD,4K (HDR, 3D, HDCP2.2/ 1.1) with embedded or analoge Audio to a USB3.0 signal. Deep Color with 12 bit or HDR with 10/ 12 bit are supported. Automatically scales 4K sources to 1080p for USB capture. Unit may be powered directly via USB 3.0. (When using USB 2.0, a Y-cable is required to provide additional power)
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

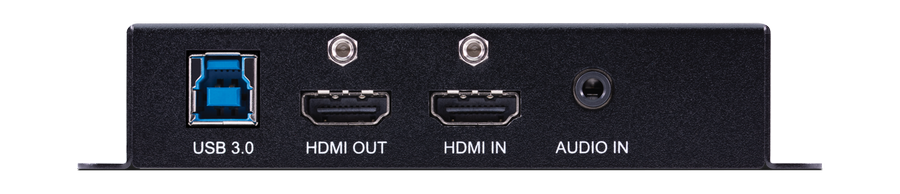

Inputs:
1 x HDMI2.0 female
1 x 3,5mm jack female (analog Audio)
Outputs:
1 x HDMI2.0 female
1 x USB-B 3.0 female
Resolutions supported:
VGA to WUXGA, 2560x1440/1600@60Hz and 480i to 1080p and 4K/ UHD@24/25/30/50/60Hz (RGB 4:4:4)
Formats supported:
Video: HDMI2.0, HDCP2.2/1.1 and DVI 1.0 (HDR 10 & 12 bit)
Audio: 2 Kanal LPCM 2.0
USB: ISO (Isochronous)
