Converter HDMI2.0 UHD/ 4K to SD-/ HD-/ 3G/ 6G/ 12G-SDI PRO-H2SDI
PROH2SDI
The unit convert a HDMI2.0 signal with embedded Audio 8 channels PCM 48 kHz or 2 channels Audio signal to a 12G-SDI (60m), 6G-SDI (80m), 3G-SDI (100m), HD-SDI (200m) or SD-SDI (300m) signal.
€ 795,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI female
1 x 3,5mm mini Jack female

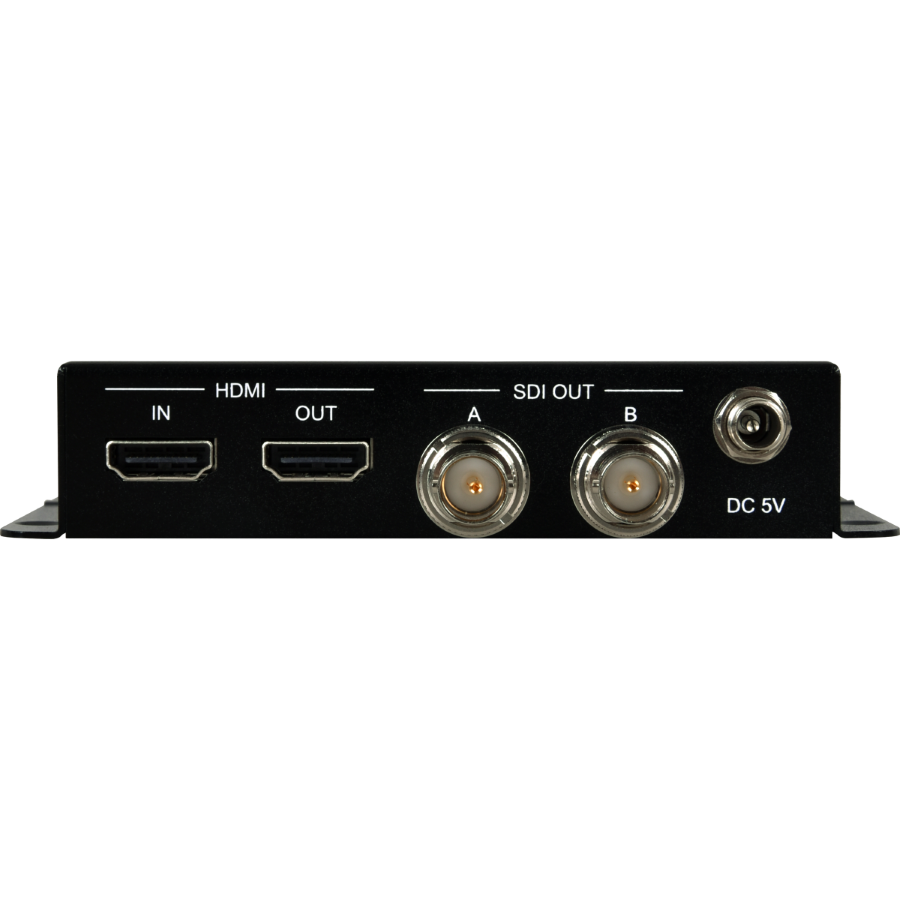

Outputs:
1 x HDMI female
2 x BNC female
Resolutions supported:
480i, 576i, 720p 50/60 Hz, 1080i 50/60 Hz, 1080p 50/60 Hz & UHD/ 4K@60Hz 8 bit (YUV 4:2:2)
Formats supported:
Video: HDMI, HDCP and DVI
Audio: digitales (embedded Audio uo to 8 channels PCM 48 KHz for HDMI), 2 channel analog Audio
Producer
CYP Europe
Product
PROH2SDI
Gehäuse
Metall
Weight (kg)
0,50
Color
Schwarz
Power supply type
Extern
Stromversorgung
5V / 2,6A DC
Operating
0°C - 40°C
Abmessungen BxHxT mm
128 x 25 x 83 mm
Artikel Nr.
9125
