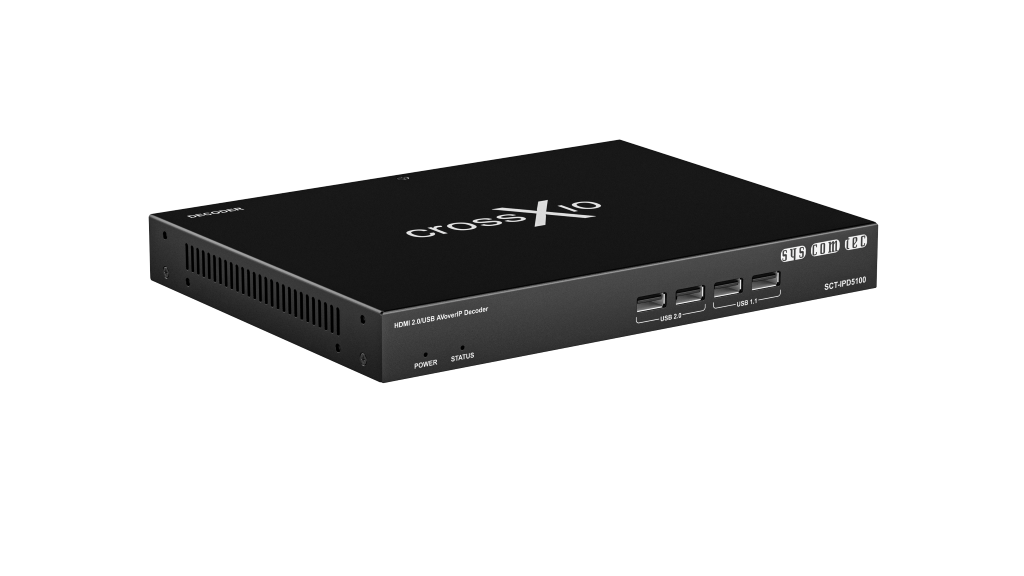

crossXio AVoverIP Decoder 4K HDMI2.0/DANTE/PoE+ SCT-IPE5100
SCTIPD5100
The AVoverIP decoder from the one Gbit crossXio series receives an HDMI2.0 video signal with analog or Dante/ AES67 audio and USB2.0/ 1.1 without noticeable latency. The integrated video scaler with rotation function (90°/ 180° & 270°) supports resolutions up to 4K@60Hz 4:4:4. Video wall function up to max. 16x16. Audio deembedding for balanced analog audio, Dante or AES67. With USB2.0/1.1 option for KVM routing/ designed for USB2.0 cameras.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

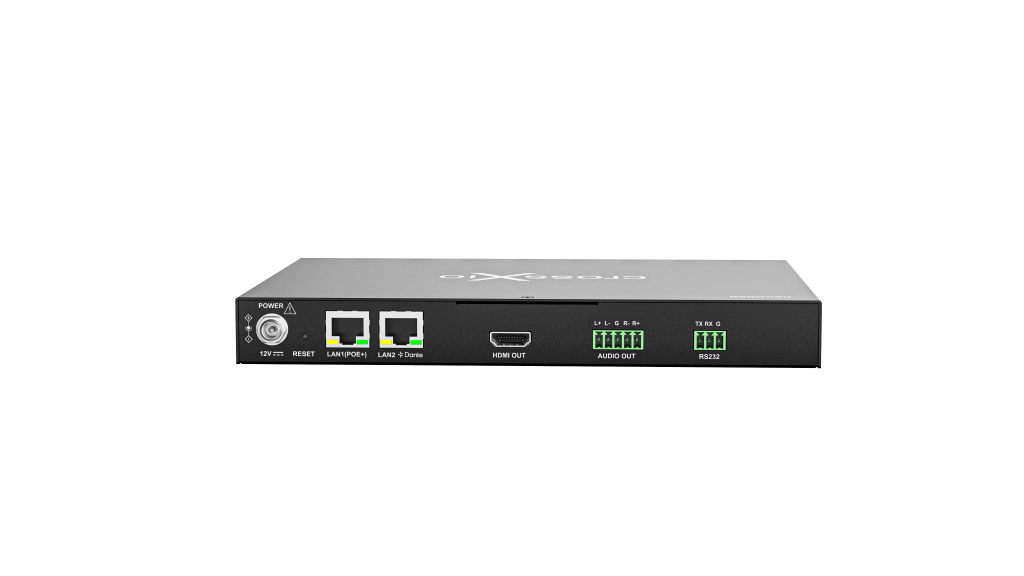

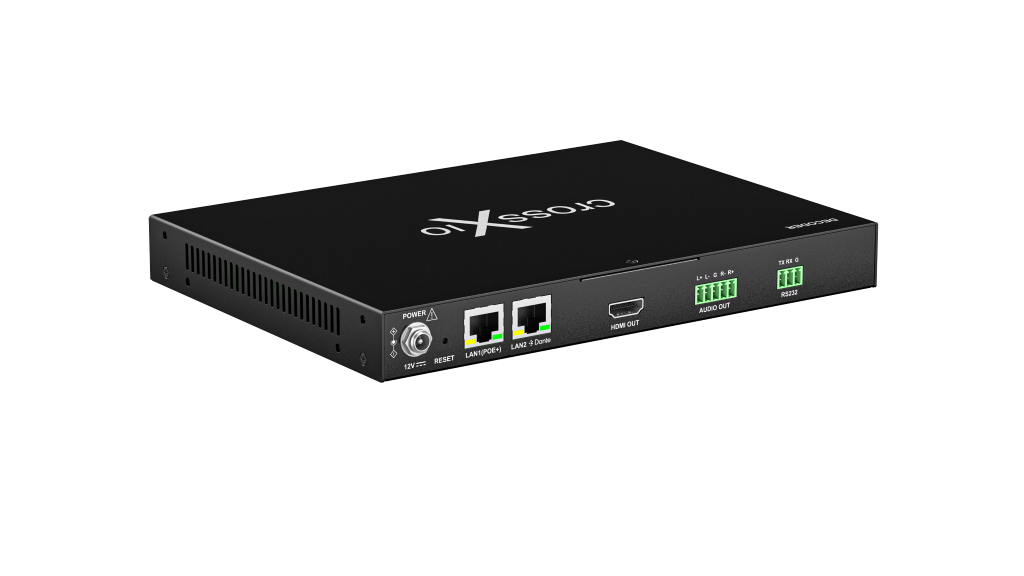

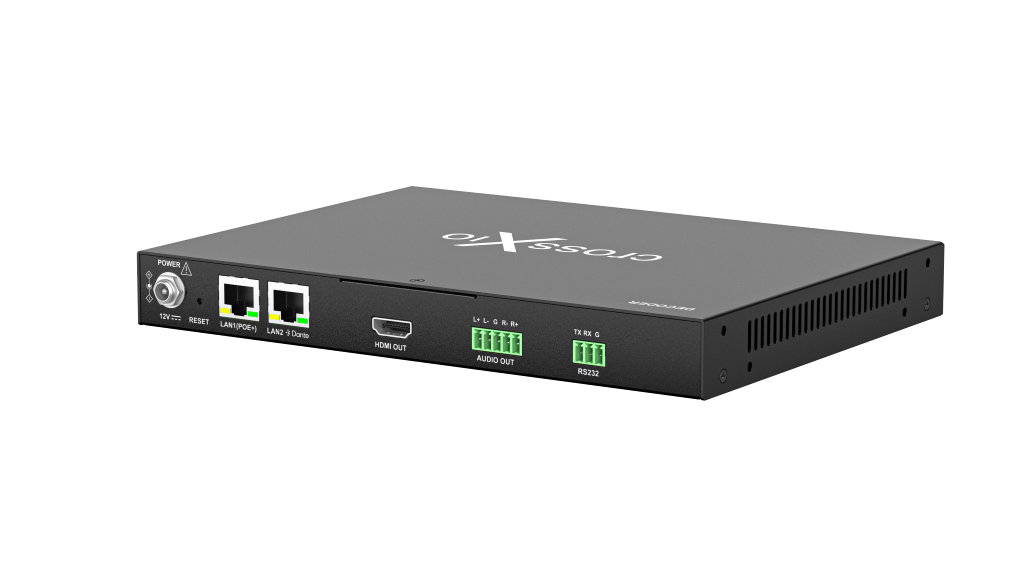

Input:
1 x RJ45 female (LAN1/ PoE+)
Outputs:
1 x HDMI female
1 x Phoenix 5 Pin female (analog Audio)

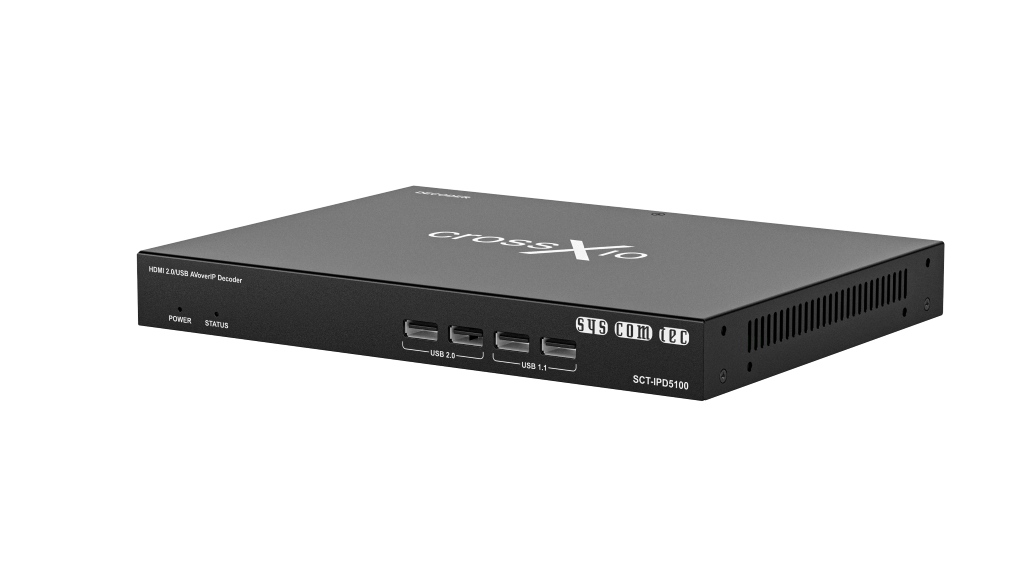

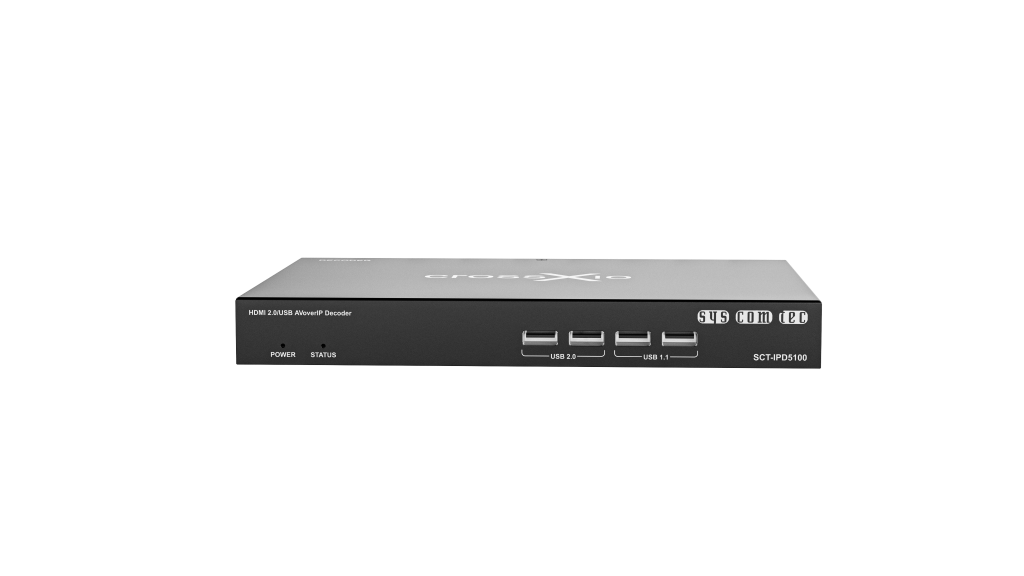

2 x USB2.0 A female
2 x USB1.1 A female
Inputs/ Outputs:
1 x RJ45 female (LAN2/ Dante)
1 x Phoenix 3 Pin female (RS232)
Control options:
Ethernet (Telnet/ SSH/ REST API) and IP Controller (RS232)
Solutions supported:
VGA to WUXGA and 480i to 1080p and 3840x2160@24/25/30/50/60Hz (4:4:4)
Formats supported:
Video: HDMI2.0, ARC/eARC, HDR10/10+, Dolby Vision, CEC, HDCP2.3/ 1.4
Audio: analog Audio, Dante or AES67
USB: extend USB2.0/ 1.1
