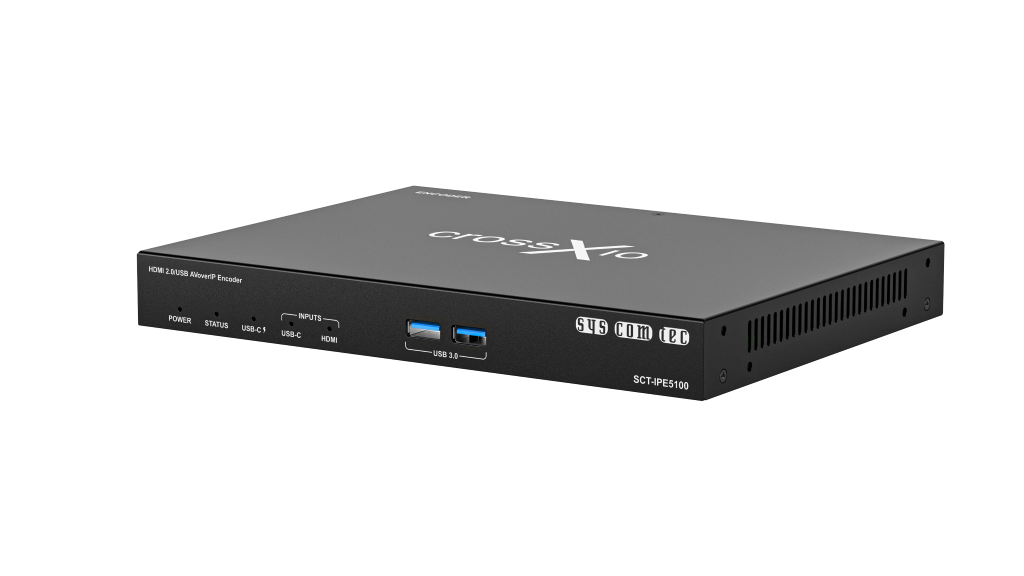

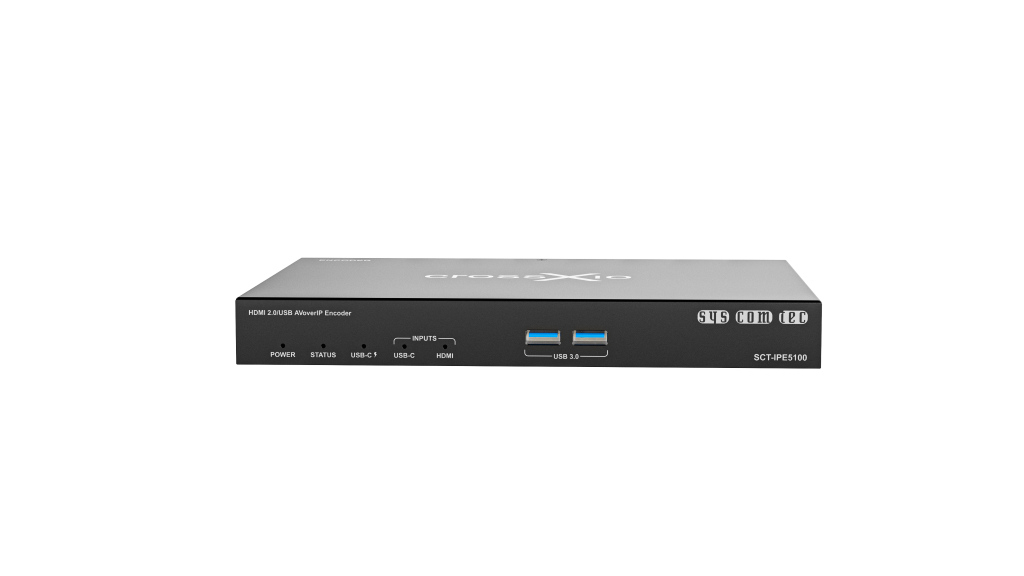

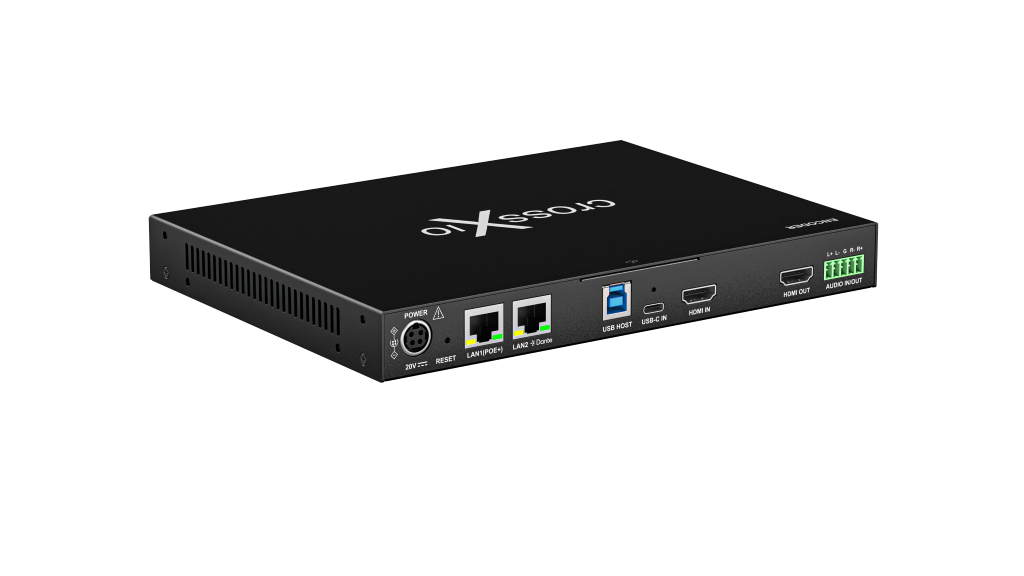

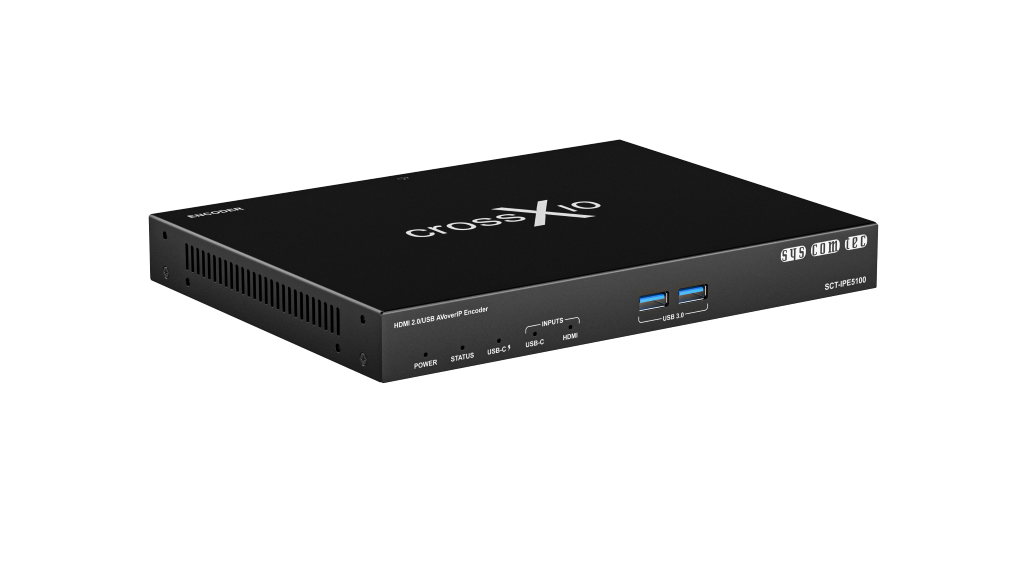

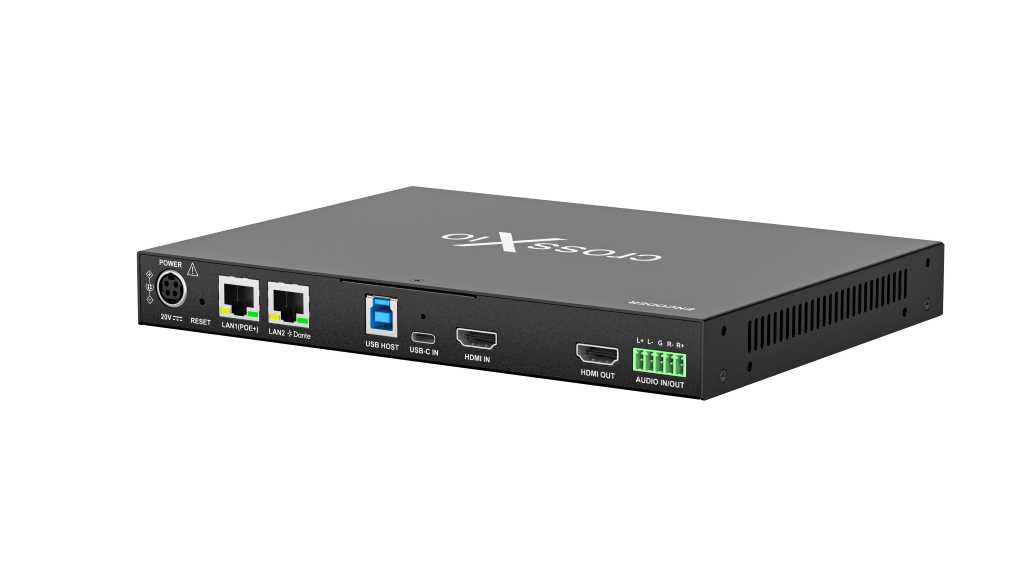

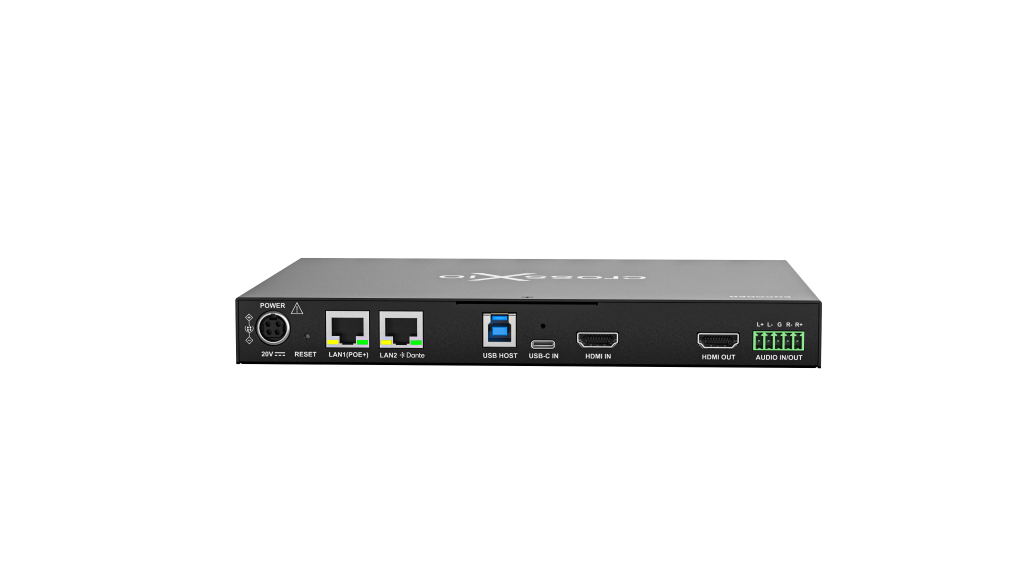

crossXio AVoverIP Encoder 4K USB-C,100W/HDMI2.0/DANTE/PoE+ SCT-IPE5100
SCTIPE5100
The AVoverIP encoder from the one Gbit crossXio series enables the transmission and switching without noticeable latency of a USB-C (100 watts optional) or HDMI2.0 video signal with analog or Dante/ AES67 audio and USB2. 0/ 1.1. The system supports resolutions up to 4K@60Hz 4:4:4 with HDMI2.0, ARC/eARC, HDR10/10+, Dolby Vision, CEC, HDCP2.3/ 1.4. Bidirectional audio embedding/ deembedding for balanced analog audio, Dante or AES67. With USB3.0 2-port hub and USB2.0/1.1 transmission with KVM routing. Power is supplied via PoE+. USB-C input 100 watts available with optional power supply.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x USB-C female (100 Watt with ext. power supply)
1 x HDMI female
1 x USB3.0 B female
Outputs:
1 x HDMI female
2 x USB3.0 A female
1 x RJ45 female (LAN1/ PoE+)
Inputs/ Outputs:
1 x Phoenix 5 Pin female (analog Audio)
1 x RJ45 female (LAN2/ Dante)
Control options:
Autoswitching, Ethernet (Telnet/ SSH/ REST API) and IP Controller (RS232)
Solutions supported:
VGA to WUXGA and 480i to 1080p and 3840x2160@24/25/30/50/60Hz (4:4:4)
Formats supported:
Video: HDMI2.0, ARC/eARC, HDR10/10+, Dolby Vision, CEC, HDCP2.3/ 1.4
Audio: analog Audio, Dante or AES67
USB: USB3.0 Hub / extend USB2.0/ 1.1
