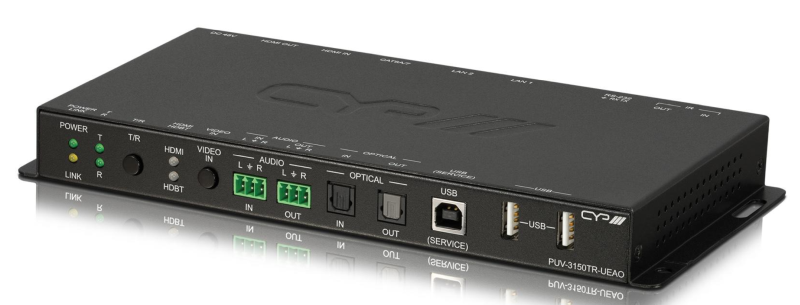

CYP Transceiver (HDBT3) HDMI 4K/ RS232/ USB /IR/ Audio PoH 100m PUV-3150TR-UEAO
PUV3150TRUEAO
The PUV-3150TR-UEAO 4K UHD+ HDMI over HDBaseT Transceiver uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio as well as Ethernet and control via a single run of Cat.6A/7 cable over distances of up to 100 meters.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x HDMI Buchse (IN)
1 x Phoenix 3 Pin Buchse (Stereo Audio in)
1 x Toslink (Digital Audio in)
1 x USB 2.0 (KM, USB Memory)
1 x 3,5 mm Klinke (IR in)
1 x Phoenix 4 Pin Buchse (RS232)
2 x RJ45 Buchse (Ethernet)
1 x RJ 45 (HDBaseT3)
1 x USB (Type B for Service)
Outputs:
1 x HDMI Buchse (Loop out im TX Mode)
1 x Phoenix 3 Pin Buchse (Stereo Audio out)
1 x Toslink (Digital Audio out)
1 x 3,5 mm Klinke (IR out)
1 x RJ45 Buchse (HDBaseT)
1 x Micro-USB (Host)
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP2.2 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio: OAR (optical Audio return), ARC (Audio return channel), LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
