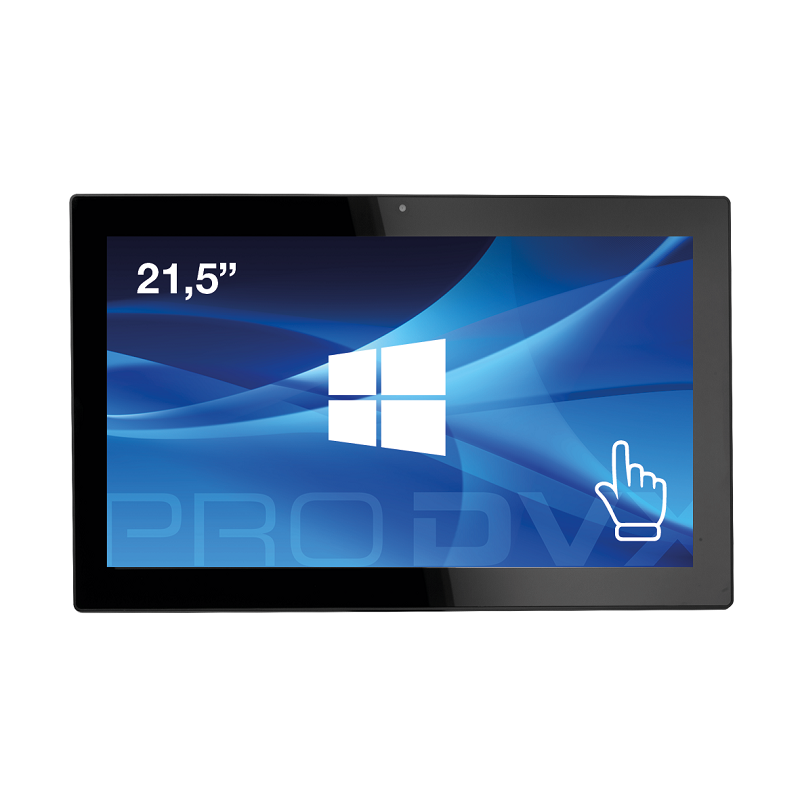

Display 21,5"/ incl. Touch/ Windows PC/ 24/7 IPPC-22

Hersteller

IPPC22

ProDVX offers a wide variety of Industrial Grade (X86) Panel PC-s for Commercial usage. These all-in-one touchscreens are suitable for various markets such as Office Automation, Home Automation, Retail, Healthcare, Security and more.
Our Panel PC-s combine a CPU board, a LCD display and an user-friendly touchscreen within a compact housing.
Screensize from 7” until 32”
Rich I/O ports
Various touch technologies; Resistive, SAW, Pro-Cap, IR
Fanless (passive cooling)
Accessories optional: NFC Module, Barcode Scanner, MSR Reader

Preis auf Anfrage

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

Resolution: 1920 x 1080
Backlight: Full-LED
Brightness: 250 nits
Touch: PCAP (10 Points)
VESA: 100
CPU: Intel Braswell N3160 Quad Core
RAM: 4GB DDR3L 1600 S0DIMM (max. 8GB)
Int. Storage: M2 SSD 64GB (up to 128GB)
Software: Windows 8, 10 Linux (not included)!
I/O Ports
3 x USB 2.0
2 x USB 3.0
1 x MicroUSB 2.0
Network:
1 x RJ-45 5V/12V x 2 (by SW Switch) (10/100/1000 Mbps)
W-LAN 802.11 b/g/n SiP
Audio out: Combo JACK x1, SPDIF x1
LSpeaker: 2 x 5W

Producer
PRODVX
Product
IPPC22
Gehäuse
Metall
Weight (kg)
7,00
Color
Schwarz
Power supply type
extern
Stromversorgung
12V/5A
Operating
0° - 40°
Abmessungen BxHxT mm
527,4 x 346.4 x 43.5 mm
Artikel Nr.
7395
