Dockingstation USB-C 100 Watt auf 2xHDMI2.0/ 4K,5K/ USB/LAN SCT-UC5-2H
SCTUC52H

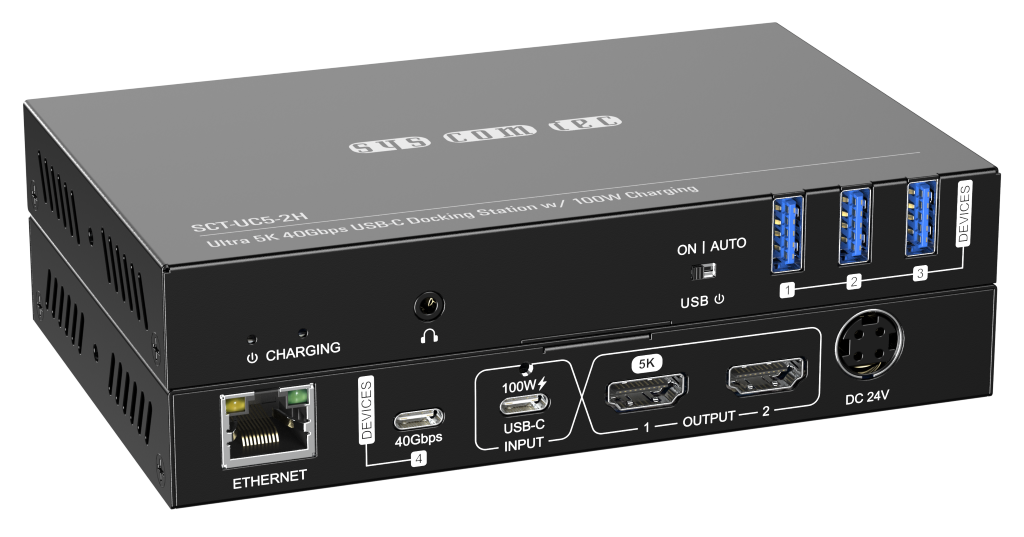

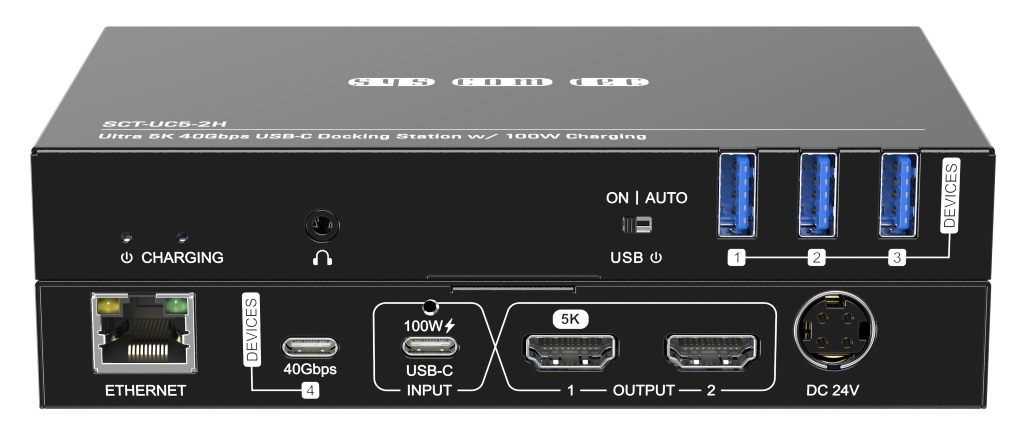

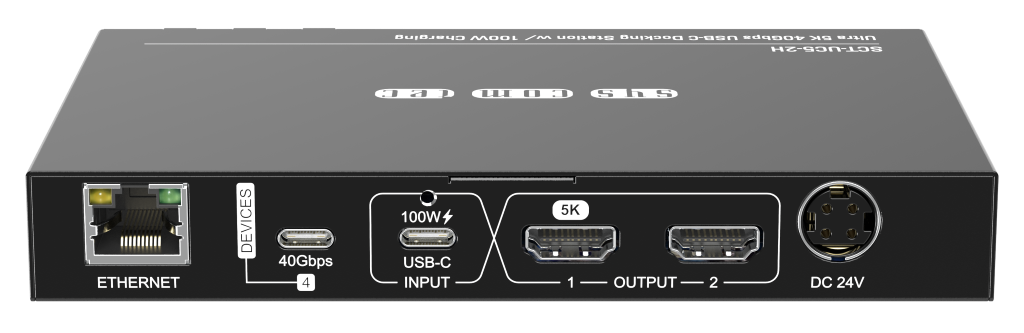

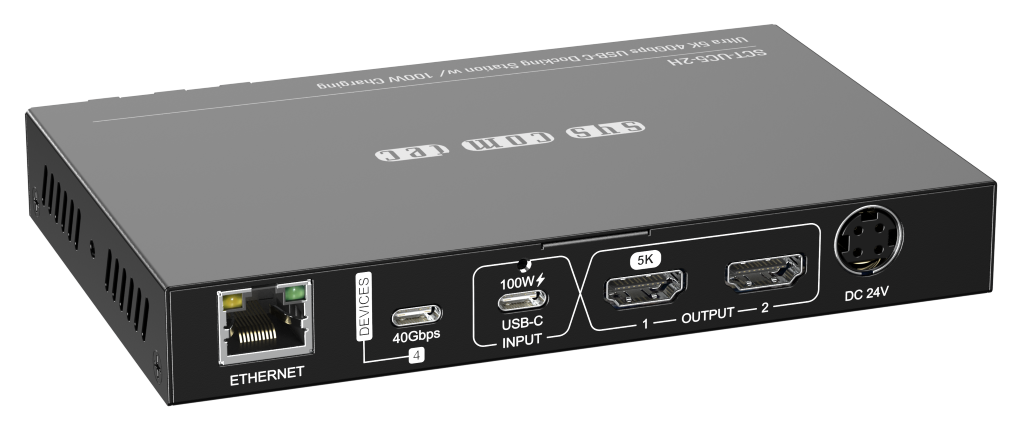

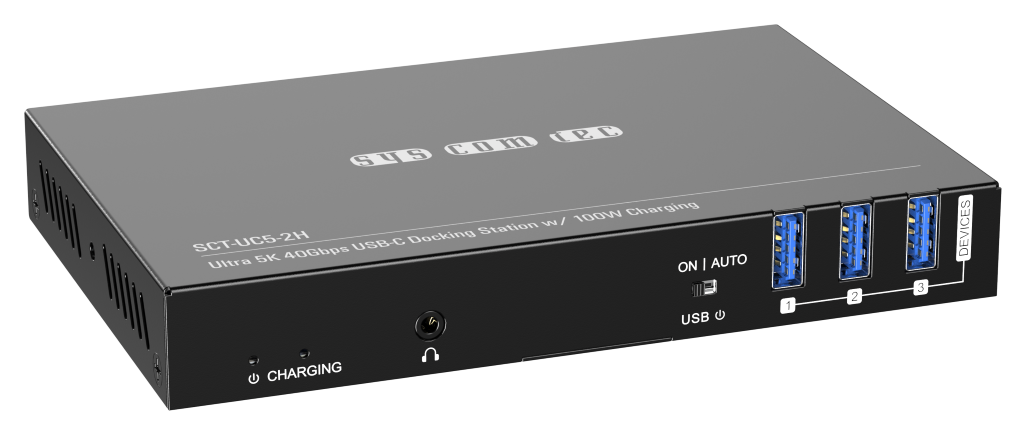

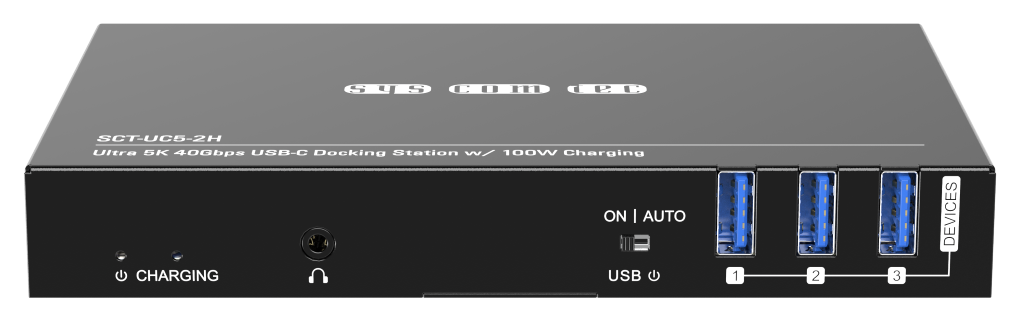

The SCT-UC5-2H is a USB4 40G switcher Docking Station w/100W Charging and supports single 5K@60Hz (5120x2880) UHD or dual 4K@60Hz display output.The upstream USB-C port provides PD 3.0 100W to the host computer, while the downstream USB-C port provides 15W power for peripherals.It also supports USB power control and device extension(4 ports) by providing three USB 3.2 Gen 2 Type-A ports for KVM devices.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
1 x USB-C female (100 Watt)
3 x USB3.0 A female (10Gbps)
1 x USB3.0 C female (40Gbps)
Ausgänge:
2 x HDMI female
1 x RJ45 female
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30/50Hz, 4K/ UHD@60Hz (4:4:4) & 5K@60Hz
Formats supported:
Video: USB3.1 GEN1, HDMI2.0, HDCP2.3/ 1.4, DVI1.0
USB: 3.1/ 3.0
