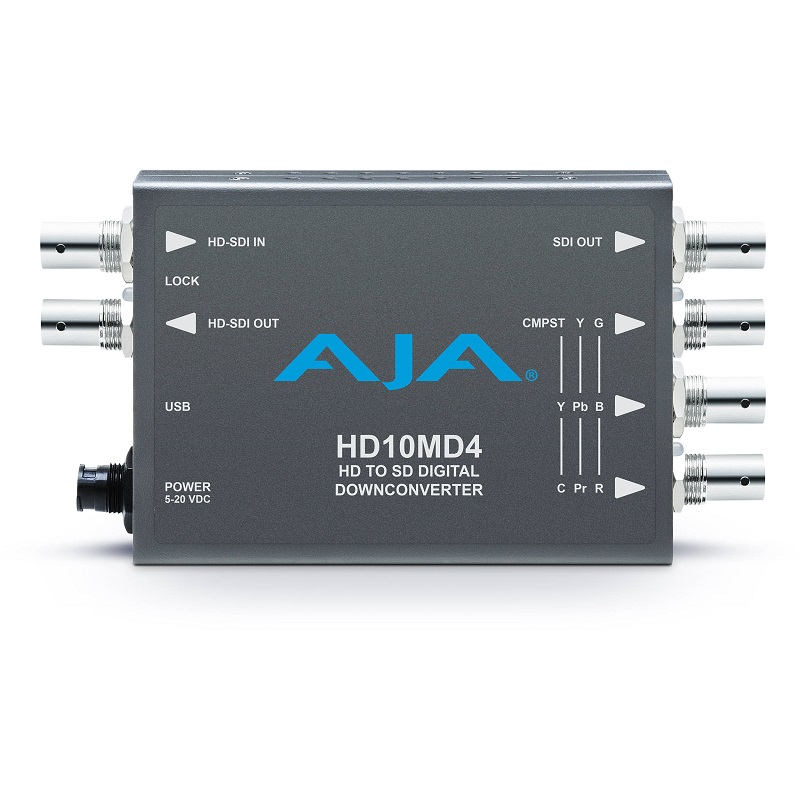

Down-Converter SD-SDI/ HD-SDI auf analog Video HD10MD4
HD10MD4
The HD10MD4 down-converts HD-SDI video to standard definition SDI and analog component/composite video utilizing AJA-s high-quality full 10-bit data path and multi-point interpolation to produce broadcast quality down-converted video.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Video Input
1 x BNC
HD SMPTE 292M, 10-bit
SD SMPTE 259M, 10-bit
Input Formats
(automatic configuration)
1920x1080i 25, 29.97 (50, 59.94 fields)
1920x1080p 23.98, 25, 29.97
1920x1080PsF 23.98, 25, 29.97
1280x720p 50, 59.94
525i
625i
Video Output
Digital
1 x BNC (processed output)
SDI - SMPTE 259M, 10-bit
1 x BNC (loop through input)
Analog
3 x BNC
YPbPr-SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video), 10-bit
Output Formats:
625i
525i
Video Processing
Down-conversion
Multi-point interpolation, 10-bit processing
3:2 conversion for 23.98 inputs
Frequency Response
Y +0, -.5db to 30 MHz
C +/- .25db to 15 MHz
Externer DIP-Schalter
Mini-Config application via USB
Power: external Powr Supply DWP-U-R1
Universeller 100-240 V, 50/60 Hz Eingang
+5 to 20V DC regulated, 7 watts max
Size: 147mm x 79mm x 25mm
Environment:
Operating Temperature: 0 to 40 degrees C
Operating Relative Humidity: 10-90% non-condensing
Operating Altitude: <3,000 meters
Safe Storage Temperature (Power OFF): -40 to 60 degrees C
