Fiber optic set DisplayPort1.2 UHD/ 4K MM 200m 1 Fiber FTDS
FTDS

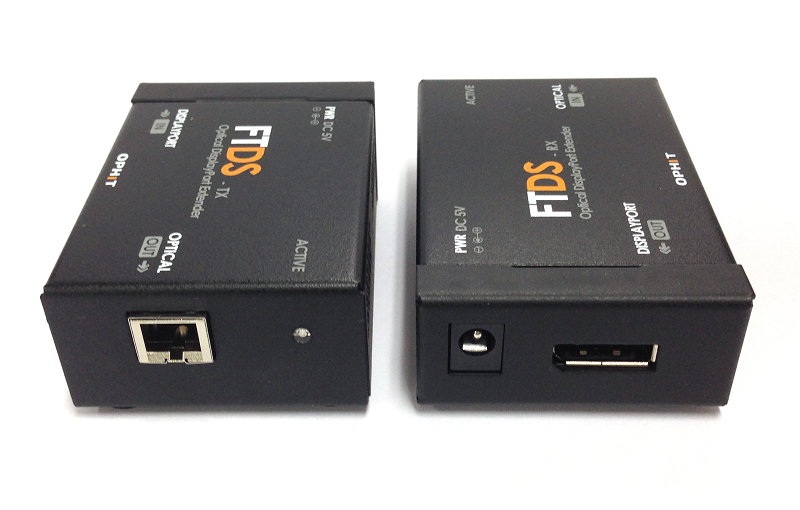

Set consists of transmitter module and receiver module. Transmits a DisplayPort1.2 (3840x2160@60Hz oder 4096x2160@60Hz) signal over one Multimode (850 nm) fiber. Pure optical transmission.
Preis auf Anfrage
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
In-/Outputs: (transmitter and receiver)
1 x 20pin DisplayPort female
1 x SC fiber optic female
Max. distance: 200m@50µm (OM3)
Resolutions supported:
1600x1200 and 1920x1200 or 3840x2160@60Hz or 4096x2160@60Hz (RGB4:4:4)
Formats supported:
Video: DisplayPort1.2, DPCD, DPCP, HDCP
Producer
Ophit
Product
FTDS
Gehäuse
Metall
Weight (kg)
0,10
Color
Schwarz
Power supply type
extern
Stromversorgung
5V / 2A
Abmessungen BxHxT mm
81,4 x 21,1 x 47,5 mm
Artikel Nr.
6450
