Fiber system USB3.1/ USB2.0/ USB1.1 4 Port 200m MM Raven 3124
3124

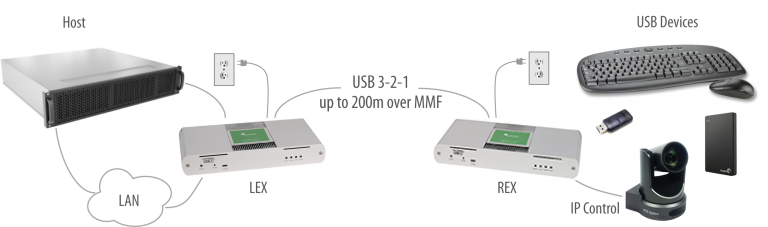

The Raven 3124 system transmits a Hi-Speed USB3.1 (up to 5Gbps), USB2.0 (up to 480 Mbps) & USB1.1 (Up to max. 12 Mbps) over 2 Multimode OM3 strings to 200m. Support by each USB port by the receiver 1,2A. Max. 30 USB devices Supports the following PC systems: Windows, Mac OS and Linux
€ 1.690,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

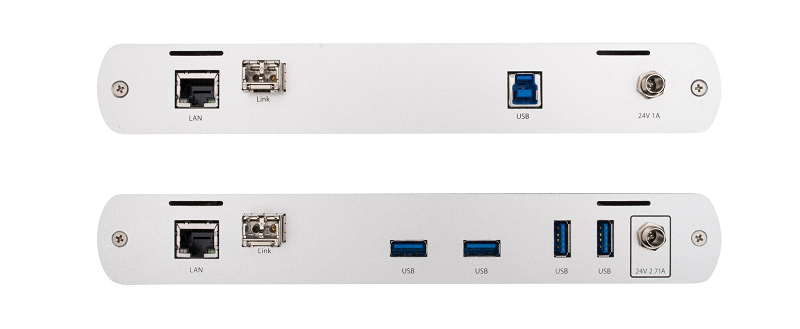

Transmitter
Inputs:
1 x USB Typ B female
1 x RJ45 LAN female
Output:
1 x Duplex LC female
Receiver
Input:
1 x Duplex LC female
Outputs:
4 x USB Typ A
1 x RJ45 LAN female
Distance:
Multimode OM3 up to 200m
Output power at the Receiver:
4 x 1,2A (5A total shared)
Producer
Icron
Product
3124
Gehäuse
Metall
Weight (kg)
2,67
Color
Schwarz
Power supply type
Extern
Stromversorgung
LEX: 24V, 1A REX: 24V, 2,71A
Operating
0° C - + 45° C
Abmessungen BxHxT mm
232,1 x 33 x 137,3 mm
Artikel Nr.
6954
