Fiber system USB3.1/ USB2.0/ USB1.1 4 Port 300m MM SCT-USB4-FMM
.png)
.png)
SCTUSB4FMM
The SCT-USB4-FMM system transmits a Hi-Speed USB3.1 (up to 5Gbps), USB2.0 (up to 480 Mbps) & USB1.1 (Up to max. 12 Mbps) over 2 Multimode OM3 strings to 200m. Support by each USB port by the receiver 1A. Following PC systems: Windows, Mac OS and Linux
€ 1.190,00 Excl. VAT .
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Transmitter
Inputs:
1 x USB Typ B female
1 x RJ45 LAN female
Output:
1 x Duplex LC female

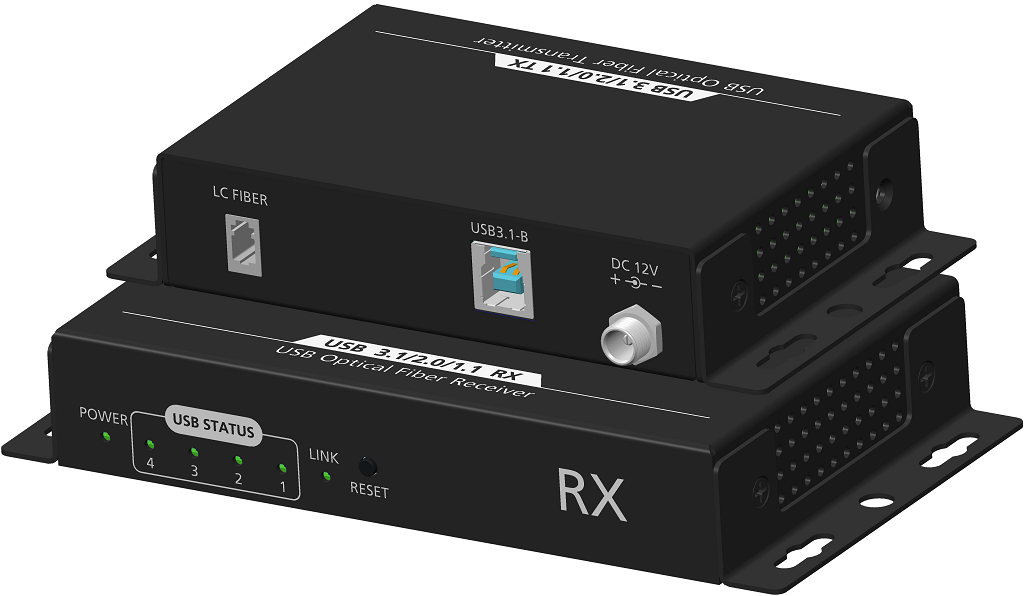

Receiver
Input:
1 x Duplex LC female
Outputs:
4 x USB Typ A
1 x RJ45 LAN female
Distance:
Multimode OM3 up to 200m
Output power at the Receiver:
4 x 1A
USB3.1, 2.0, 1.1 (Control, Interrupt, Isochronous und Bulk)
Producer
syscomtec
Product
SCTUSB4FMM
Gehäuse
Metall
Weight (kg)
2,67
Color
Schwarz
Power supply type
Extern
Stromversorgung
LEX: 12V REX: 12V
Operating
-10° bus 60° C
Abmessungen BxHxT mm
LEX: 135x75x26mm / REX: 160x85x26mm
Artikel Nr.
8891
