HD/SD Component, S-video, Composite Video Set MM/SM 7820/21-B7S
7820/21B7S

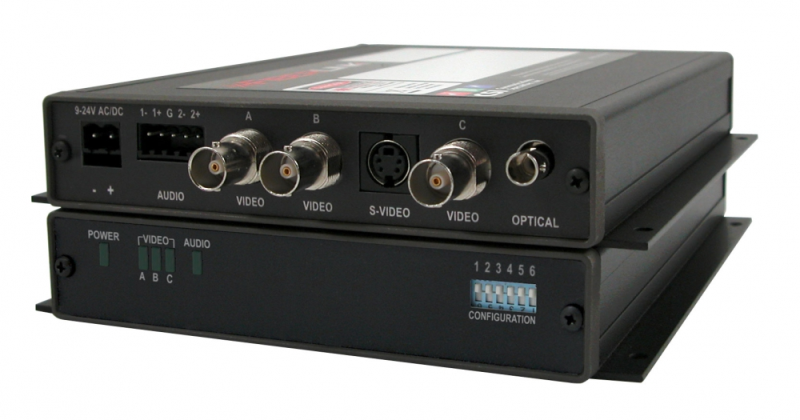

Set consists of transmitter 7820-B7S and receiver 7821-B7S. Transmitss one component video and stero audio or one S-Video, one composite video amd stereo audio or three composite video and stereo audio signals over one singlemode or multimode fiber (1310 nm). Available as box or cardversion (card version fills 2 slots in 6000A card cage).
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
In-/Output (transmitter and receiver)
3 x BNC female
1 x ST 3A female for optical signal
1 x Phoenix female (audio)
1 x 4-Pin Mini-DIN for S-Video
Max. distance / loss budget:
Singlemode: 40 km and 17 dB
Multimode (62,5 µm): 1 km and 17 dB
Multimode (50 µm): 1,3 km and 17 dB:
