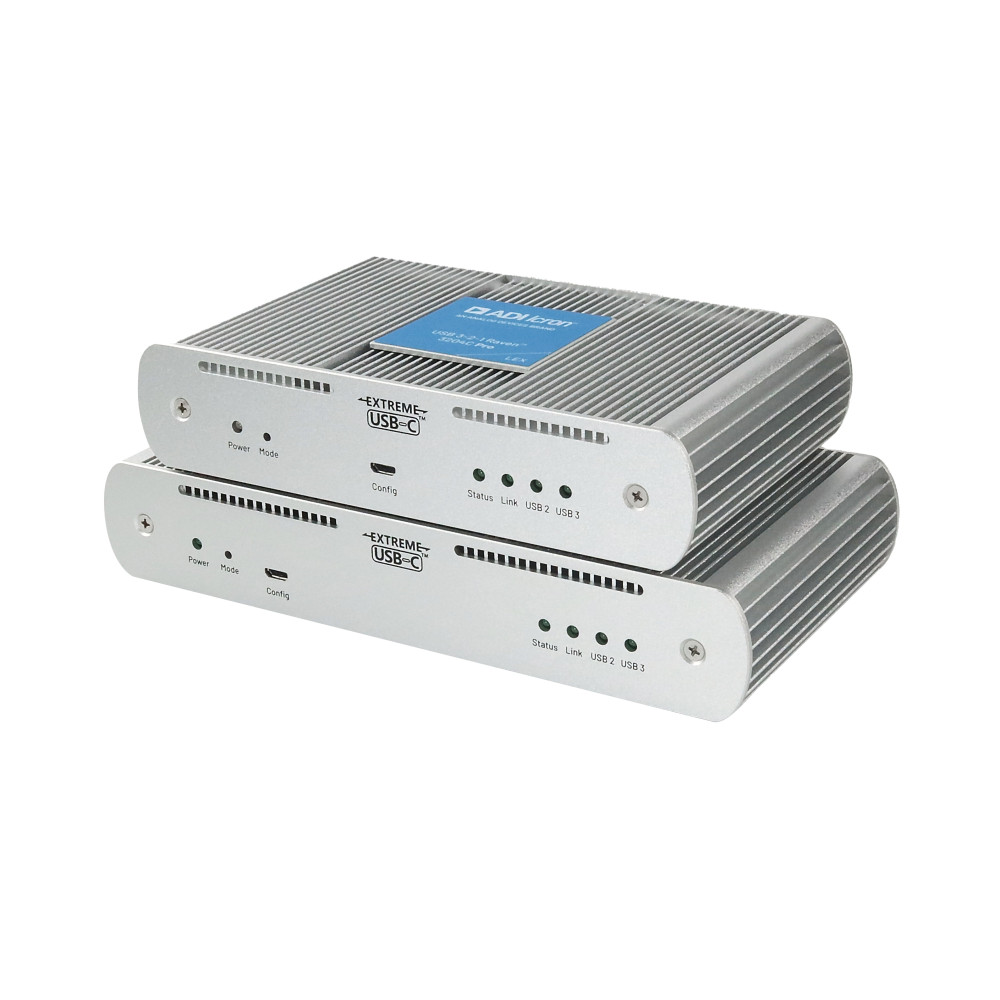

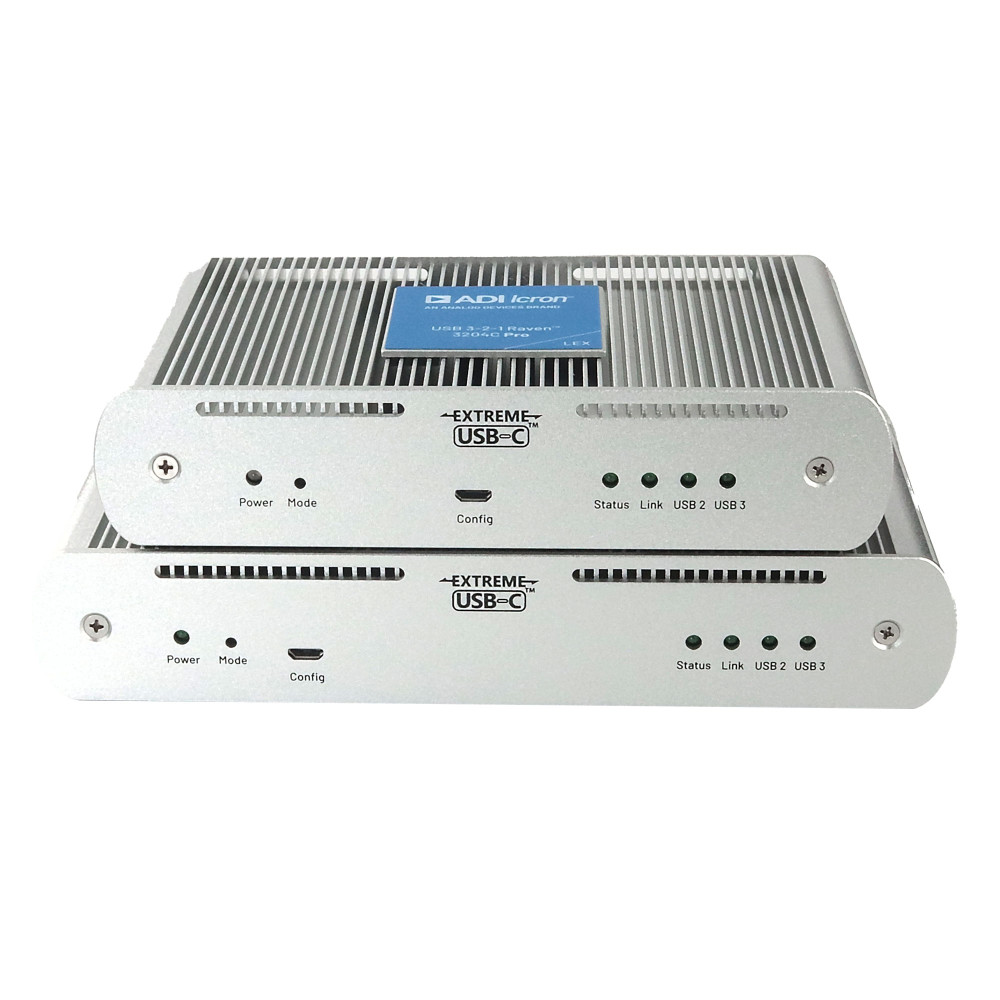

LAN/ CAT System USB3.2/USB2.0/USB1.1 4 Port 100m Raven 3204C Pro

Hersteller

3204CPro

The Raven 3204C Pro system transmits a Hi-Speed USB3.2 Gen 1 (up to 5Gbps), USB2.0 (up to 480 Mbps) & USB1.1 (Up to max. 12 Mbps).
Extends USB 3-2-1 up to 200m across a 10GbE LAN switch or 100m though a single CAT 6a/7 cable. Supplies 3A (15W) per USB-C port and 1.2A (6W) per USB-A port. 30 USB devices Supports the following PC systems: Windows, Mac OS and Linux. Special features for Google Hangouts, USB cameras & Capture Devices. Support for Isochronous USB 3 Transactions.

€ 1.950,00 Excl. VAT .

Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschließend eine kostenlose Beratung an!

Description


Technical Specification

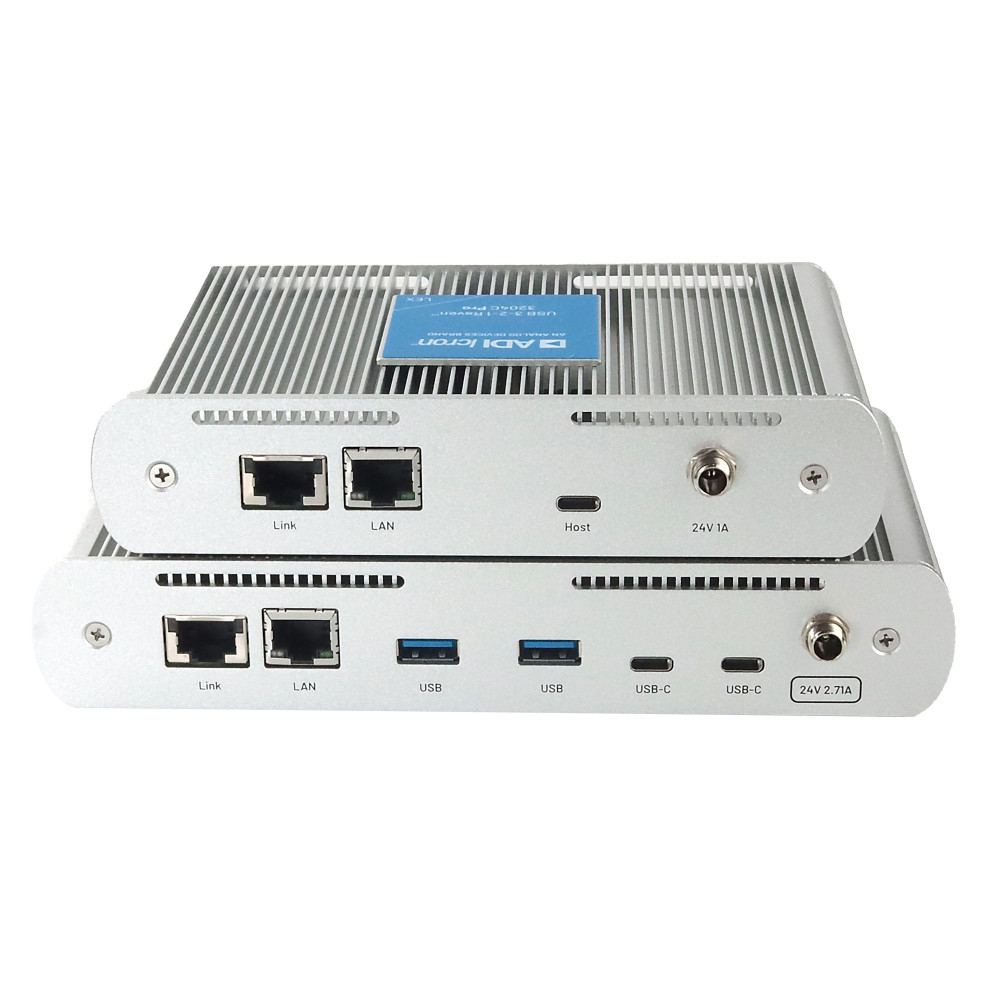

Transmitter
Inputs:
1 x USB Typ B female
1 x RJ45 LAN female
Outputs:
1 x RJ45 CAT female

Receiver
Inputs:
1 x RJ45 CAT female
Outputs:
4 x USB Typ A female
1 x RJ45 LAN female
Output power at the Receiver:
4 x 1,2A (5A total shared)
Formats supported:
USB3.2 Gen 1, 2.0, 1.1 (Control, Interrupt, Isochronous und Bulk)

Producer
Icron
Product
3204CPro
Gehäuse
Metall
Weight (kg)
2,67
Color
Schwarz
Power supply type
Extern
Stromversorgung
LEX: 24V, 1A REX: 24V, 2,71A
Operating
0° C - + 45° C
Abmessungen BxHxT mm
232,1x33x137,3 mm
Artikel Nr.
9505
