LAN Fiber Transceiver SDVoE 10Gbit HDMI2.0/ RS232/ IR/ USB/ LAN SDV-FTRX
SDVFTRX

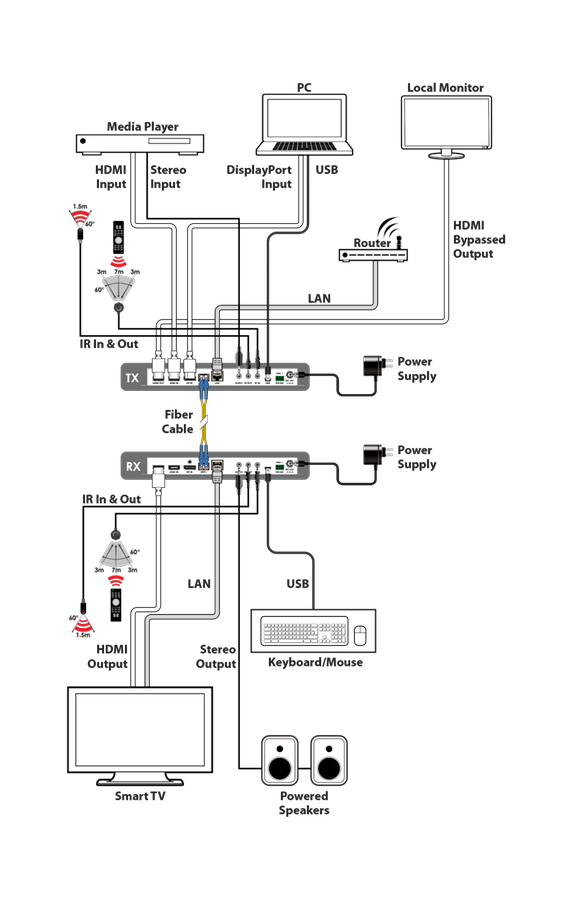

The LAN Transceiver (SDVoE) support the transmission from a HDMI2.0 (UHD 3840x2160@60Hz 4:4:4) or DisplayPort1.2 with RS232, IR, Audio, LAN 1 Gbit and a USB1.1/ 2.0 about 2 Multimode Fiber.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

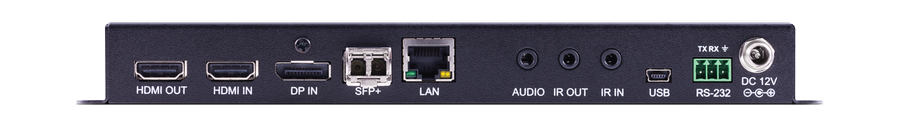

Inputs:
1 x SFP+ female SDVoE (1xRX Mode LC Duplex Multimode OM3)
1 x HDMI female
1 x Display Port female
1 x 3,5mm mini jack Audio female(TX Mode)
1 x 3 Pin Phoenix RS232 female
1 x 3,5mm mini jackIR female
1 x RJ45 LAN female
1 x Mini USB B female
Outputs:
1 x SFP+ female SDVoE (1xTX Mode LC Duplex Multimode OM3)
1 x HDMI female
1 x 3,5mm mini jack Audio female (RX Mode)
1 x 3,5mm mini jack IR female
Solutions supported:
VGA to WUXGA and 480i to 1080p and UHD@60Hz 4:4:4
Formats supported:
Video: HDMI2.0, HDCP2.2/ 1.4 und DVI 1.0
Audio: Stereo Audio
Control: USB1.1, USB2.0
Standard: SDVoE
Delay: 0 (Zero latency)
