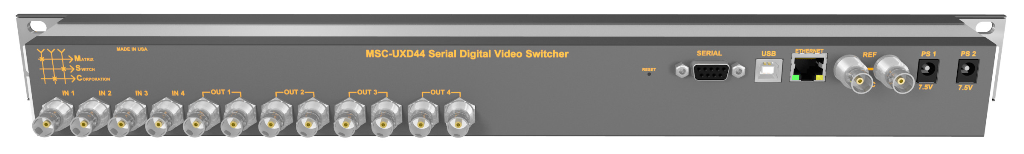

Matrix SD-/ HD-/ 3G/ 6G/ 12G-SDI 4x4 with Buttons MSC-UXD44L
MSCUXD44L
4 HDSDI Videosources can be switched up to 4 Sinks. Each output have to connectors. All SMPTE Standards (SMPTE) 12G (11.88 Gbit/s), 6G (5.94 Gbit/s), 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s) are re-clocked, non-standard SDI rates passed by. Embedded Audio and ancillary Data are passes by. Cabel compensation up to 120m @3G with Belden 1694A. Additional Features: 10 presets available, Status LED, support redundant Power supply, Web GUI, RS-232/RS-485 controllable, USB port, Sync Ref, Rack Mount version.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x BNC female
1 x BNC In/Out f. Ref. Sync
Outputs:
4 x BNC female (Out 1 bis 4 with dual out)
Control options:
RS232 or LAN
Resolutions supported:
until 3 Gbps
Formats supported:
SMPTE-259M, 292M, 344M and DVB-ASI
Re-clocking for this data rates:
143 Mbps, 177 Mbps, 270 Mbps, 360 Mbps, 540 Mbps, 1,485 Gbps and 3 Gbps
