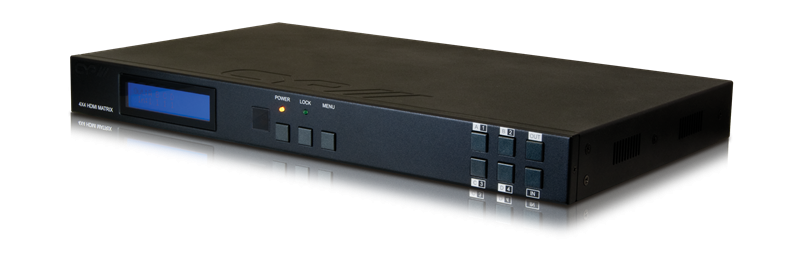

Matrix switcher (HDBaseT) 4x4 HDMI/ LAN/ RS232/ IR/ PoE 100m PU-424HBTE
PU424HBTE

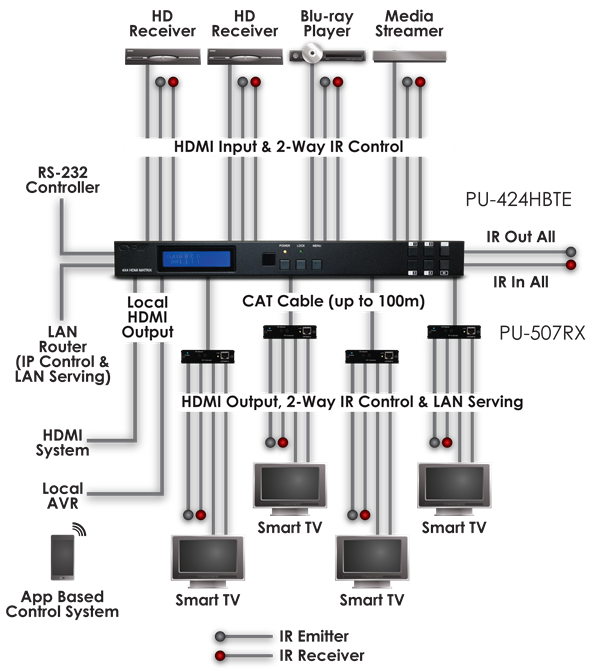

Switch 4 HDMI signals to 4 HDBaseT receivers (2 HDMI1.3 signal paraell). The unit transmit Video, Audiom IR, HDCP 1.1 and an EDID information with POE for the receivers up to 100m (CAT6,7) and 80m (CAT5e).
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x HDMI female
5 x 3,5 mm female for IR
1 x 9 Pin Sub-D (RS 232)
1 x RJ45 LAN for Firmware Update or control
1x Mini USB for Service
Outputs:
4 x RJ45 female (HDBaseT)
2 x HDMI female
5 x 3,5 mm female for IR
Control options:
Frontpanel, CEC, RS232, LAN, Mini-USB oder IR
Resolutions supported:
VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA und 480i bis 1080p
Formats supported:
Dolby TrueHD and DTS-HD Master Audio + LPCM
Bandwidth: 10,2 Gbps per channel
