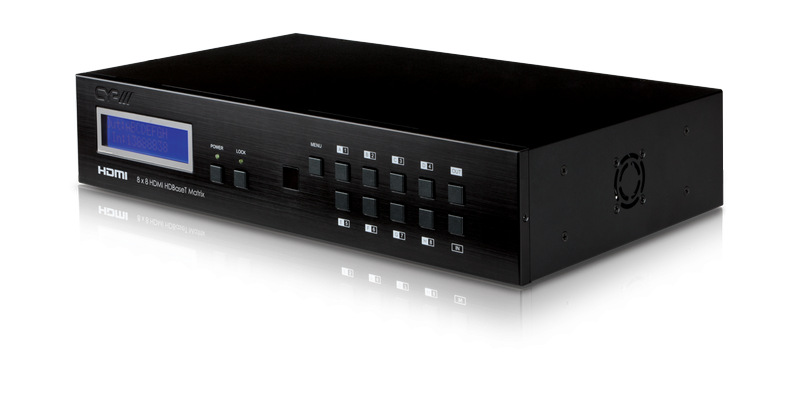

Matrix switcher (HDBaseT) 8x8 HDMI/ LAN/ RS232/ IR/ PoE 100m PU-8H8HBTE
PU8H8HBTE

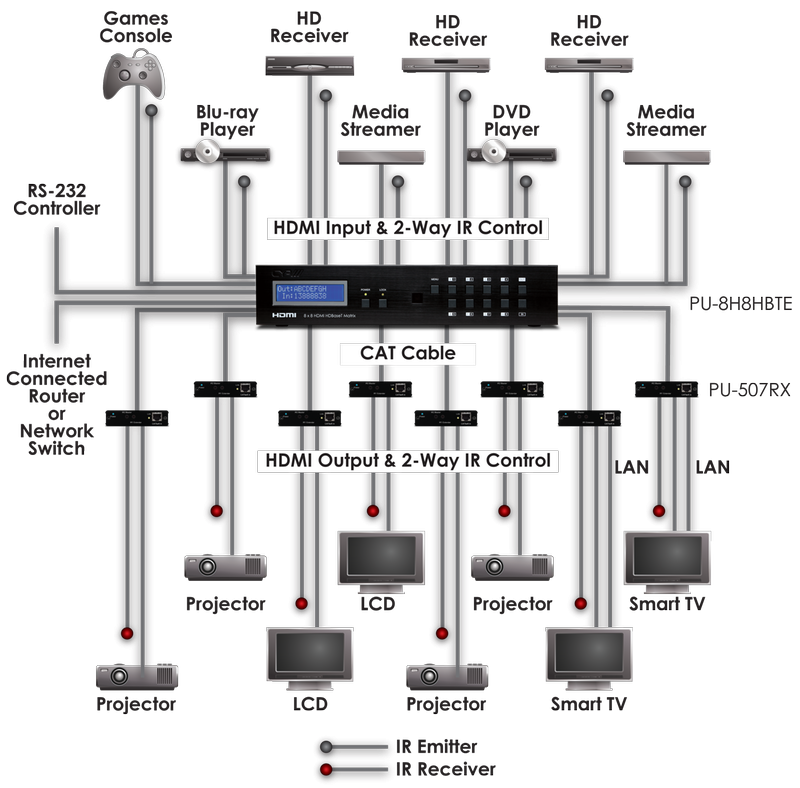

Switch 8 HDMI signals to 8 HDBaseT receivers. It can transmitt Video, Audio, LAN, HDCP 1.1 and EDID Information and POE for the Receiver up to 100m (CAT6) or 80m (CAT5e).
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
8 x HDMI female (8x uncompressed AV and Data)
1 x 9 Pin Sub-D (RS 232)
1 x RJ45 LAN for firmware update or control
1 x Mini USB for service

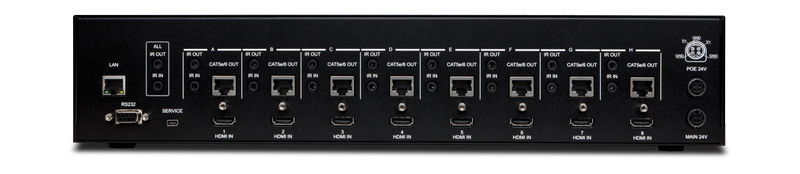

Outputs:
8 x RJ45 female (HDBaseT)
9 x 3,5 mini Jack female for IR
1 x 9 Pin Sub-D (RS 232)

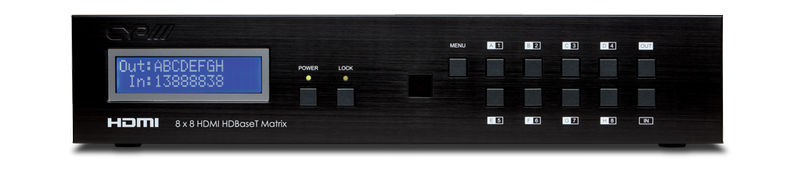

Control options:
Frontpanel, CEC, RS232, LAN, Mini-USB oder IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Dolby TrueHD and DTS-HD Master Audio + LPCM
Bandwidth: 10,2 Gbps per channel
