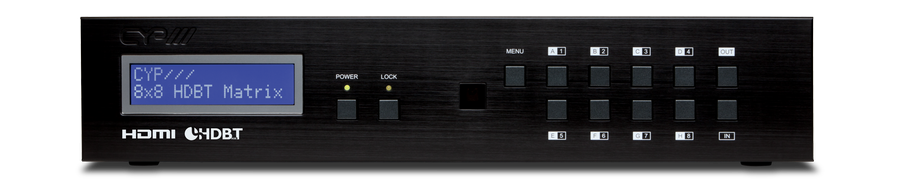

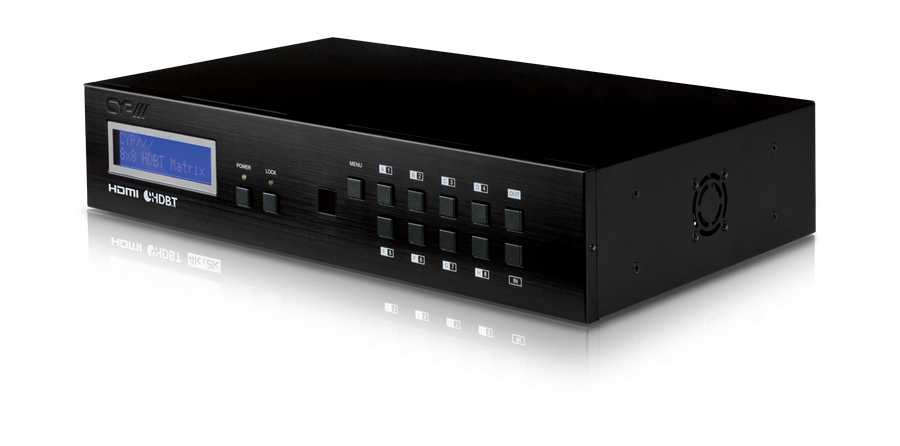

Matrix switcher (HDBaseTLITE) 8x8 HDMI/ IR 60m PU-8H8HBTPL
PU8H8HBTPL
Switch 8 HDMI signals to 8 HDBaseT receivers. It can transmitt Video, Audio, HDCP 1.1 and EDID information and PoC for the Receiver (PU-515PL-RX) up to 60m (CAT5e,6,7).
Preis auf Anfrage
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification

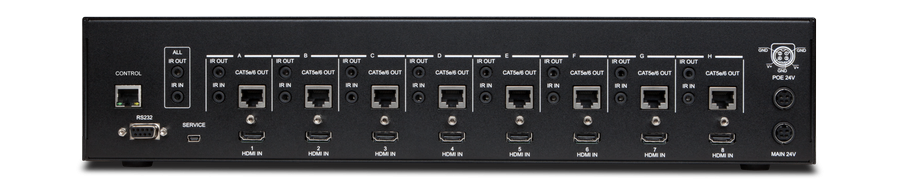

Inputs:
8 x HDMI female (8x uncompressed AV and Data)
9 x 3,5 mini Jack female for IR
Outputs:
8 x RJ45 female (HDBaseT)
9 x 3,5 mini Jack female for IR
Control options:
Frontpanel, CEC, RS232, LAN, Mini-USB oder IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Dolby TrueHD and DTS-HD Master Audio + LPCM
Bandwidth: 10,2 Gbps per channel
Producer
CYP Europe
Product
PU8H8HBTPL
Gehäuse
Metall
Weight (kg)
4,50
Color
Schwarz
Power supply type
Extern
Stromversorgung
24V, 6,25 A DC
Operating
0° C - + 40° C
Abmessungen BxHxT mm
440 x 90 x 255
Artikel Nr.
6270
