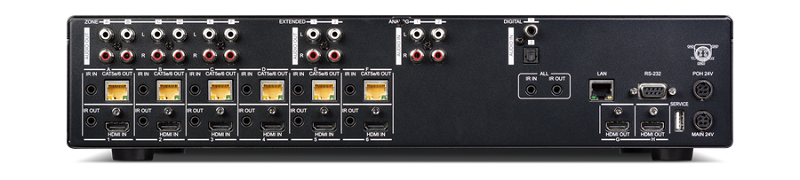

Matrix switcher (HDBT2) 6x8 HDMI2.0 UHD,4K/ LAN/ RS232/ PoH 100m PUV-662-4K22
PUV6624K22
The PUV-662-4K22 HDMI/HDBaseT Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 6 HDBaseT outputs and 2 independent HDMI2.0 outputs. The HDBaseT outputs allow transmission via a single CAT5e/6/7 cable up to 100m, whilst the independent HDMI outputs support cable lengths of up to 10m. This matrix supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio as well as 3D video content. The PUV-662-4K22 matrix incorporates an independent audio matrix with 8 audio outputs and 4 audio inputs. These outputs and inputs can be used for de-embedding HDMI audio to feed the audio outputs and embedding this audio to the HDBaseT and HDMI outputs. In addition, volume, mute, treble, bass and audio lip-sink correction control are available on all direct audio outputs. Optical Audio Return (OAR) Technology allows the optical input on the PUV-1530RX receiver to be routed back to the audio matrix. LAN connectivity provides a 100BaseT network for smart TV-s or games consoles in every zone. The matrix has a built-in pattern generator which can be used to verify the video signal on any of its 8 output ports. The Power over HDBaseT (PoH) function provides power to compatible receivers. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI. CYP provide control drivers for all the major control systems. This unit also supports RS232 pass-through to the receivers. The PUV-662-4K22 is designed to be used with PUV-1530RX or PUV-1510RX receivers that can utilise the PoH capabilities of the matrix.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
6 x HDMI female (10x HDMI - Uncompressed AV and Data)
6 x RCA female (4x Configurable Analogue Audio - Stereo (L/R)
1 x Toslink female (2x Configurable Digital Audio)
2 x RCA female (2x Configurable Digital Audio)
7 x 3.5mm female Stereo mini-jack (9x IR Receiver)
1x RJ45 LAN female (IP Control / LAN Serving]
1 x 9 Pin Sub-D (RS 232)
1 x USB for service
Outputs:
6 x RJ45 female (HDBaseT)
12 x RCA female (8x Mirrored HDBaseT audio - Stereo (L/R)
7 x 3,5 mini Jack female for IR
Control options:
Frontpanel, CEC, RS232, LAN, USB or IR
Resolutions supported:
VGA to WUXGA and 480i to 1080p and 4K/ UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0)
Formats supported:
Video: HDMI2.0, HDCP1.4/ 2.2 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio: OAR (optical Audio return), LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
