Matrix switcher HDMI 8x8 OR-HD88HC
ORHD88HC

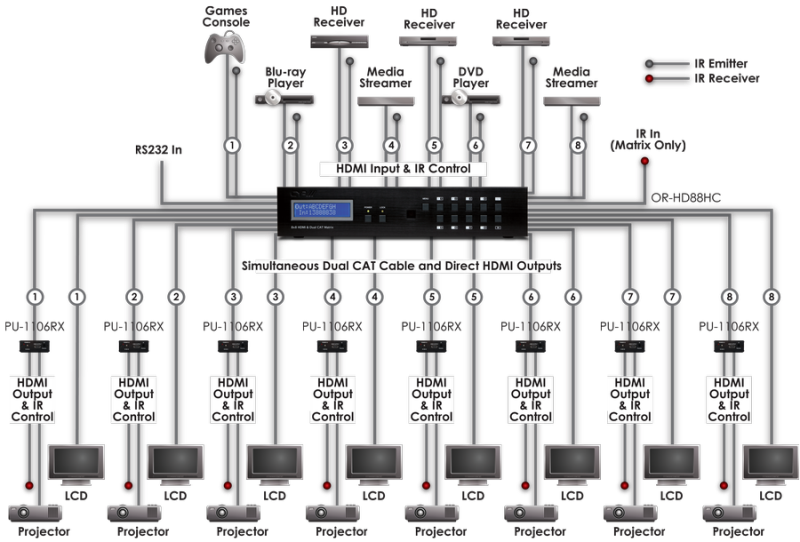

Switch 8 HDMI/ DVI-D sources to 16 (8 x HDMI & 8 x dual CAT) displays. Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend the HDMI signal up to 45m for multi-room connectivity. The HDMI input is compensated, clock/ phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal running up to 15m.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
8 x HDMI female
Outputs:
8 x HDMI female
8 x Dual Cat female
Control options:
Frontpanel, CEC, RS232, LAN, Mini-USB or IR
Resolutions supported:
640x480 to 1920x1200 and 480i to 1080p
Formats supported:
Video: HDMI, HDCP 1.1 and DVI 1.0 (Deep Color 10 & 12 bit)
Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + LPCM, Audio Sampling up to 192kHz 24 bit
