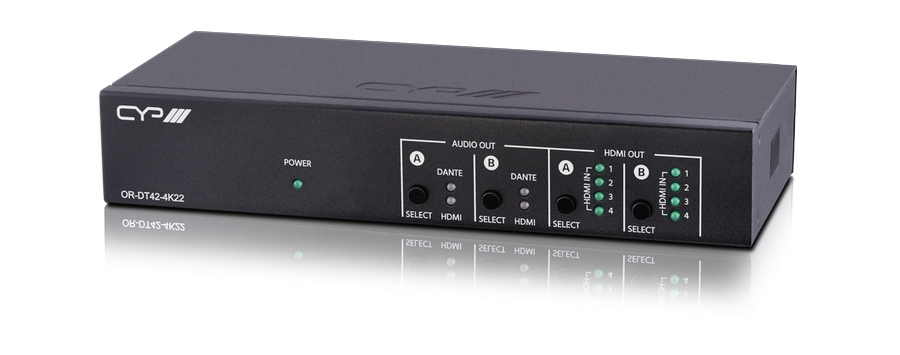

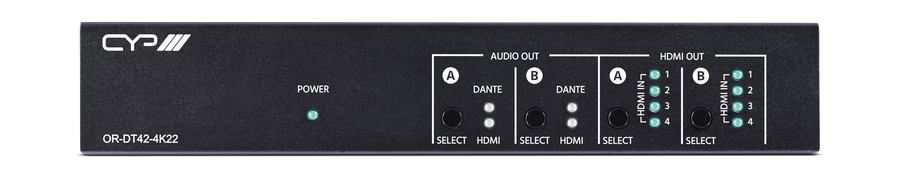

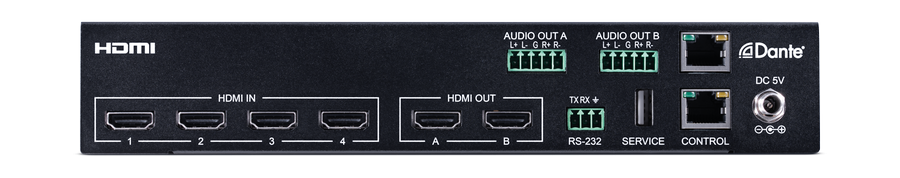

Matrix switcher HDMI2.0/Dante UHD/ 4K/ HDCP2.2 4x2 OR-42-4K22
ORDT424K22
This 4x2 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to either of the two connected HDMI displays. This matrix switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays. The unit supports all the latest features of the HDMI2.0 specification such as 4K UHD resolutions (4K2K@60Hz - YUV4:4:4),HDR (High Dynamic Range), -Deep Color-, and High Definition audio. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.
Legen Sie dieses produkte in den Beraterkorb und fordern Sie anschlieÃend eine kostenlose Beratung an!
Description
Technical Specification
Inputs:
4 x HDMI female
Outputs:
2 x HDMI female
Control options:
Frontpanel, RS232, LAN or IR, USB Service
Solutions supported:
640x480 to 1920x1200 and 480i to 1080p and up to 4K/ UHD@60Hz YUV4:4:4
Formats supported:
Video: 4K, 2K, HDMI, HDCP and DVI (Deep Color 8 & 12 bit)
Audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
